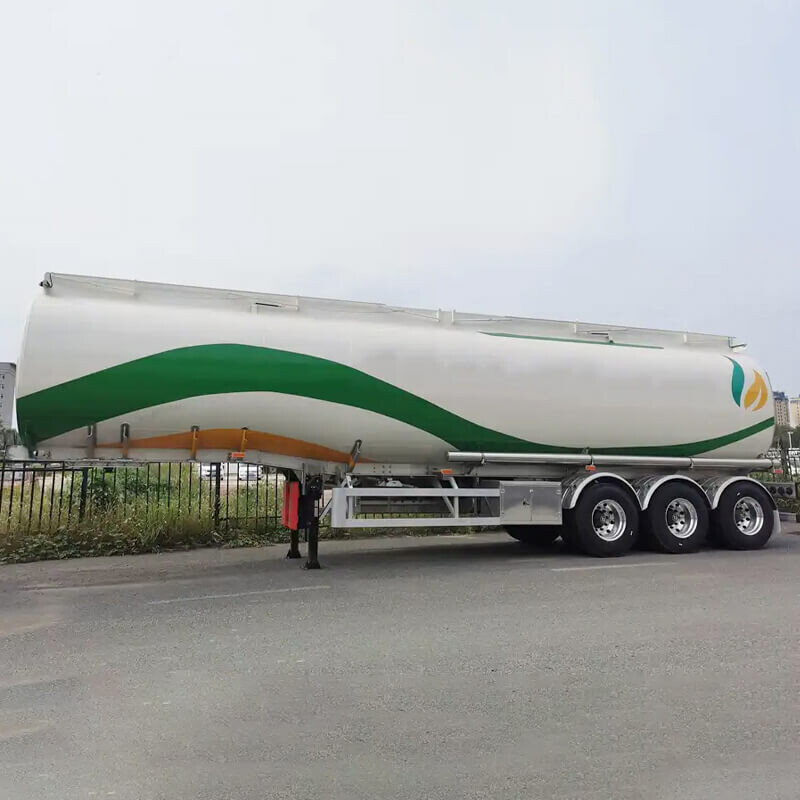

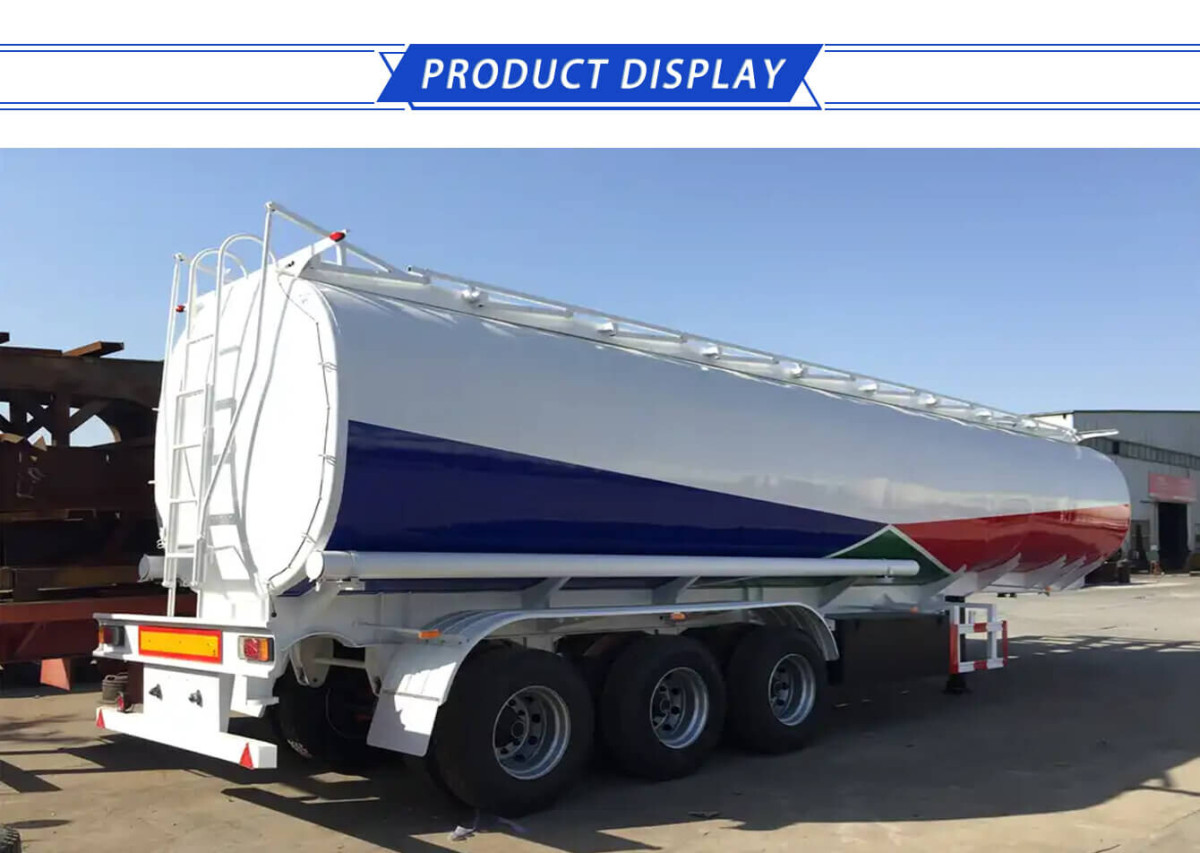

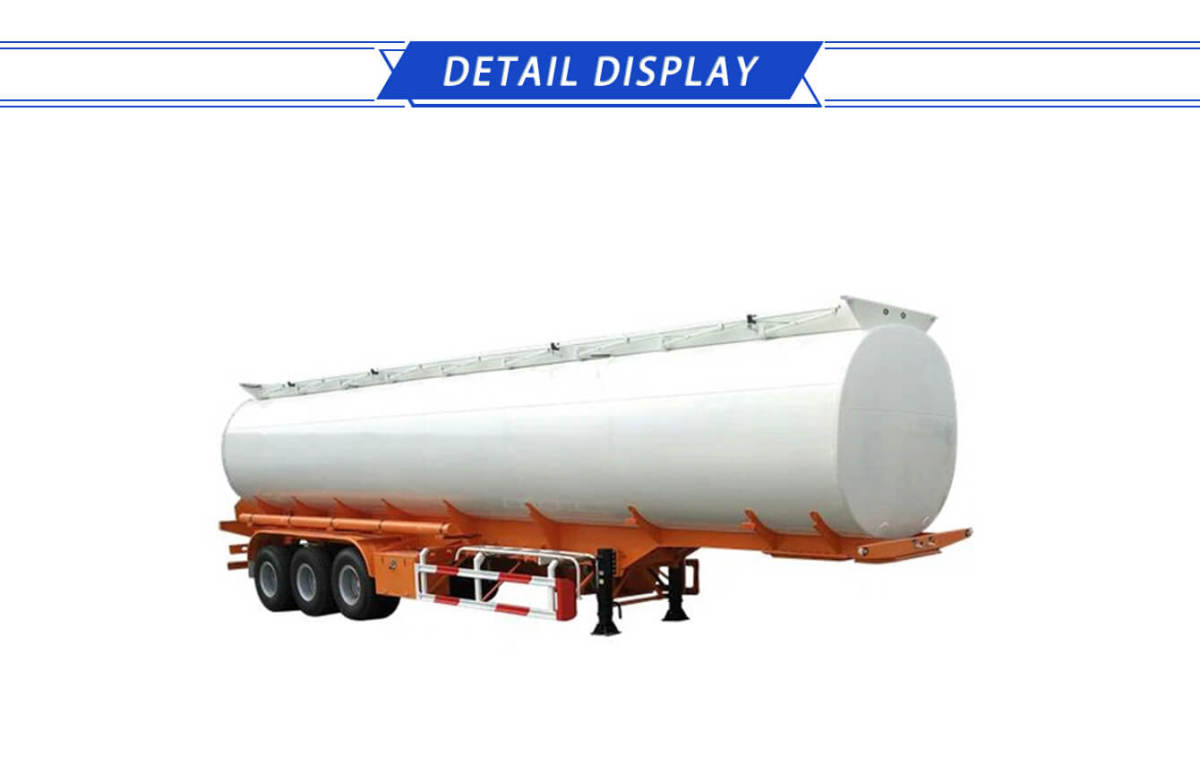

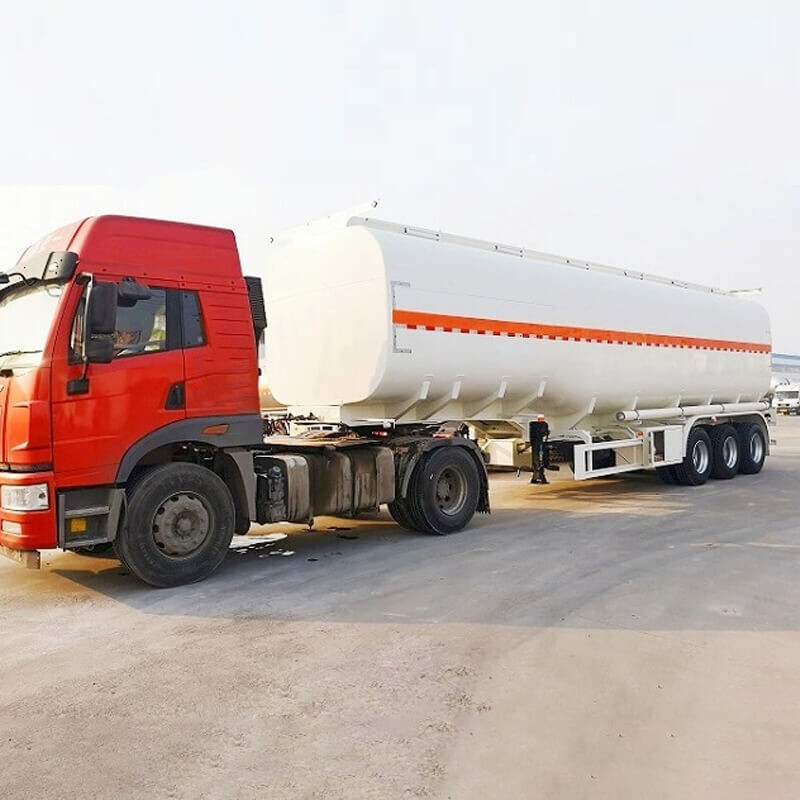

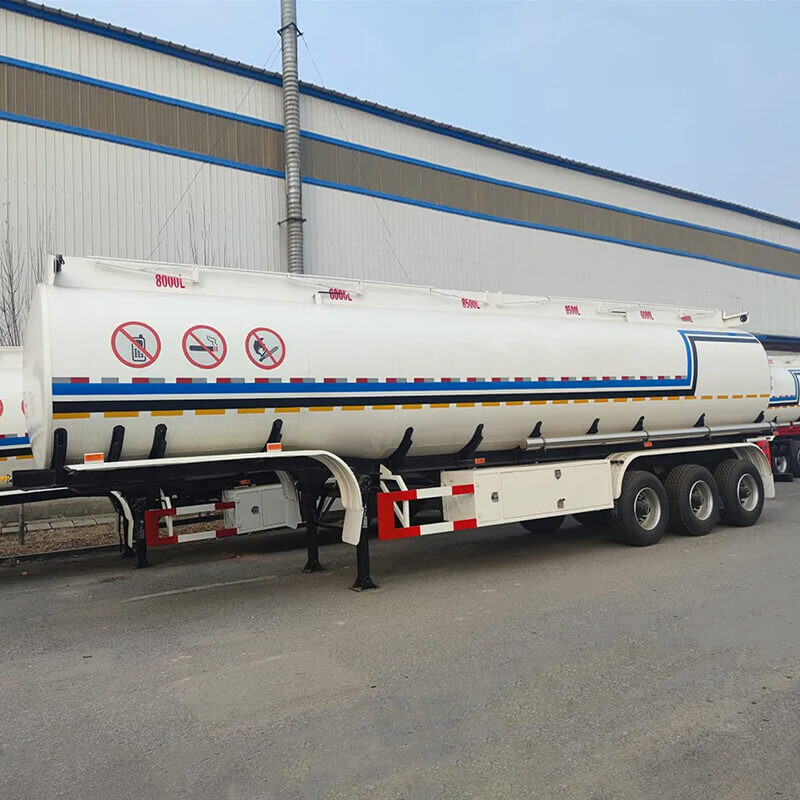

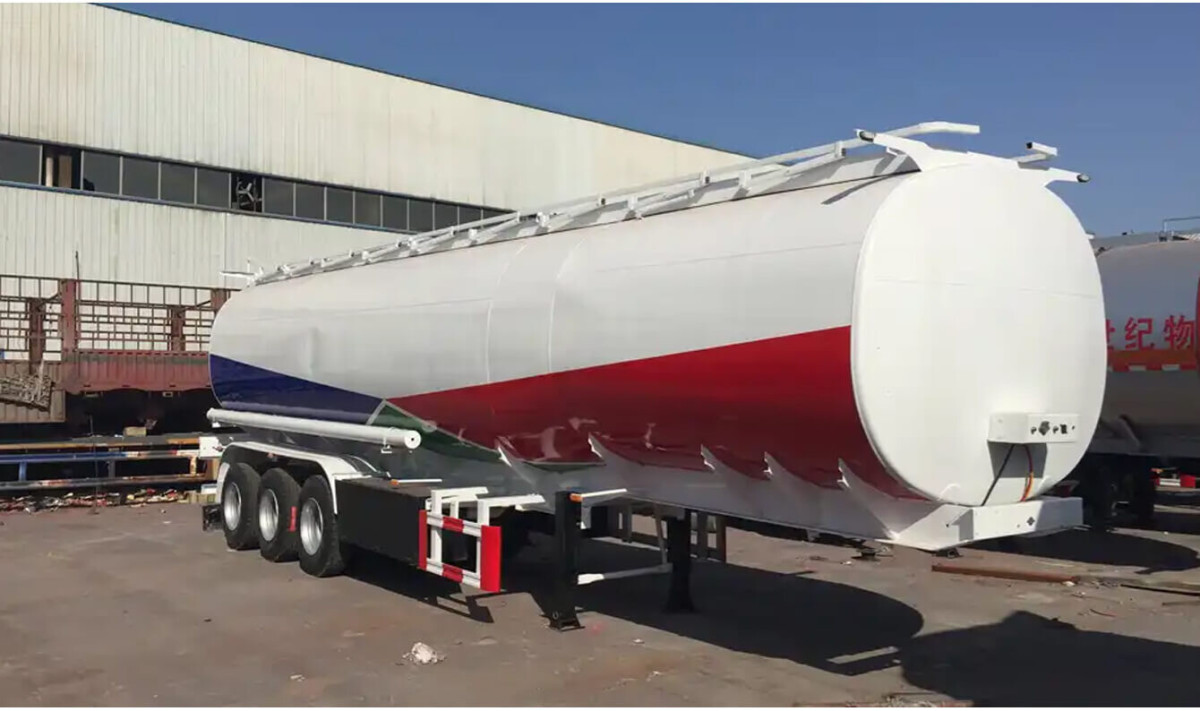

Are you in search of a dependable and long-lasting solution for transporting petrol, gasoline, diesel, and various other oils? Look no further than our Carbon Steel Tank Trailer for sale. Built with high-quality carbon steel material, these trailers are designed to withstand the rigorous demands of the African environment. Not only the trailer itself, but every component, from axles to suspension, tires to the main beam, is carefully chosen to ensure optimal performance even on the toughest road conditions.
Carbon Steel Tank Trailer Specifications
CARBON STEEL TANK TRAILER SPECIFICATIONS |
Feature: | Carries Fuel, Oil, and Petroleum |
Dimension (L*W*H): | 11,500*2,500*3,750 mm (40,000L) |
Model: | XM9400GRY |
Material: | Carbon Steel |
Compartment: | 3 (12,000L + 16,000L + 12,000L) |
Capacity (kgs): | 40,000L |
Tare Weight (kgs): | 9,200 |
Kingpin: | JOST BRAND Bolt-In 3.5” |

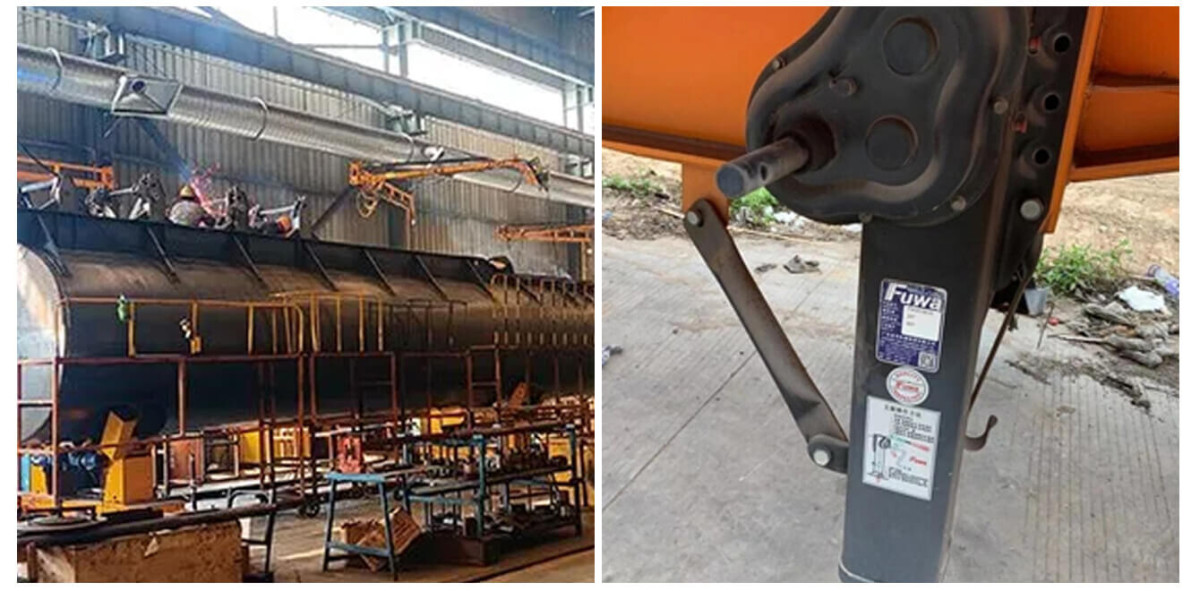

Landing Gear: | JOST BRAND 19” |
Tire Size: | Triangle Brand 11R22.5 (14 sets) |
Rim Size: | 9.00*22.5 (13 sets) |

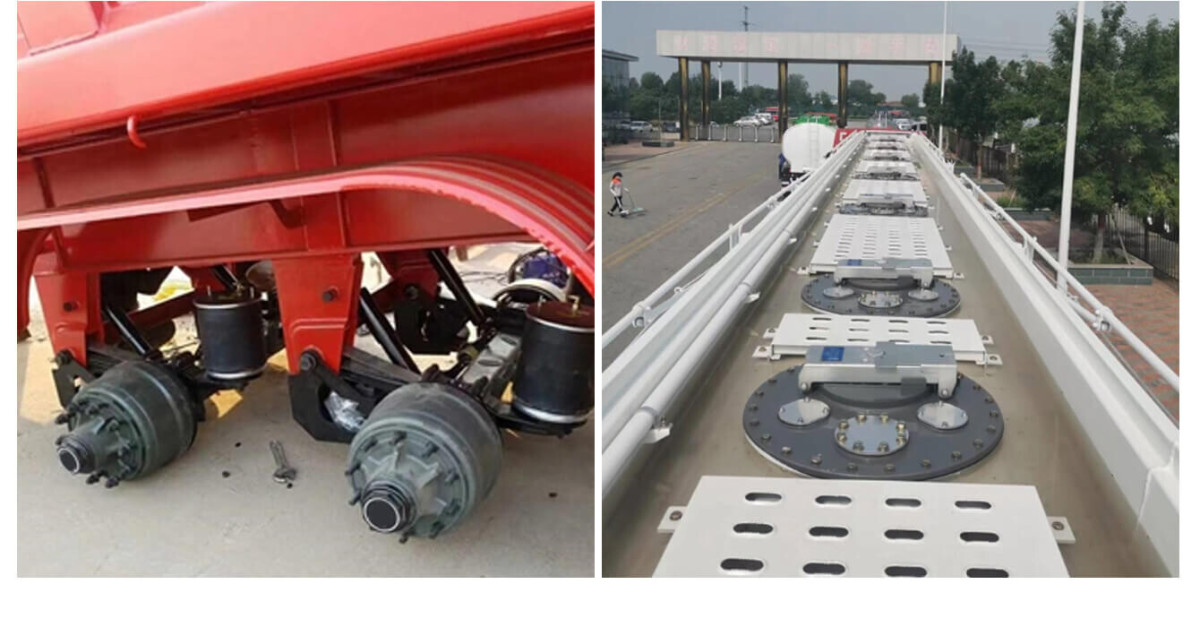

Axle: | BPW Brand 12 Tons, 3 Axle |
Leaf Springs: | Steel Suspension with 8pcs of Leaf Springs |
Brake System: | RE 6 Relay Valve |
Manhole: | Aluminum Alloy Ø500mm (20”) Manhole with Aluminum Alloy Cover and Breather Valve |
Discharge Valve: | Aluminum Alloy Discharge Valve with Cover |
Foot Valve: | Pneumatic Control DN80 Aluminum Alloy Foot Valves |
Pneumatic Control System: | 1 Set Pneumatic Control Combined Switch, 1 Unit Emergency Switch |
Discharge Hose: | 2 Units 3”×6M Factory PVC Hose with Quick Coupling on Both Ends |
Vapor Recovery & Overfill System: | Optional |
Fire Extinguisher Carrier: | 2 Units at the Left Rear of the Tanker, Including 2 Units 8kg Dry Powder Type Fire Extinguishers Inside |
Electric System: | One Unit of 24V 7-Pin ISO Standard Socket; with Brake Light, Turn Light, Reverse Light, Side Light, Reflector, Fog Light; One Set of 6-Pin Standard Cable |
Prime & Topcoat Painting: | S.A.2.5 Standard Sandblasting; Zinc-Rich & Polyurethane Painting |
We can build the trailers according to the customer’s design and requirements. |
