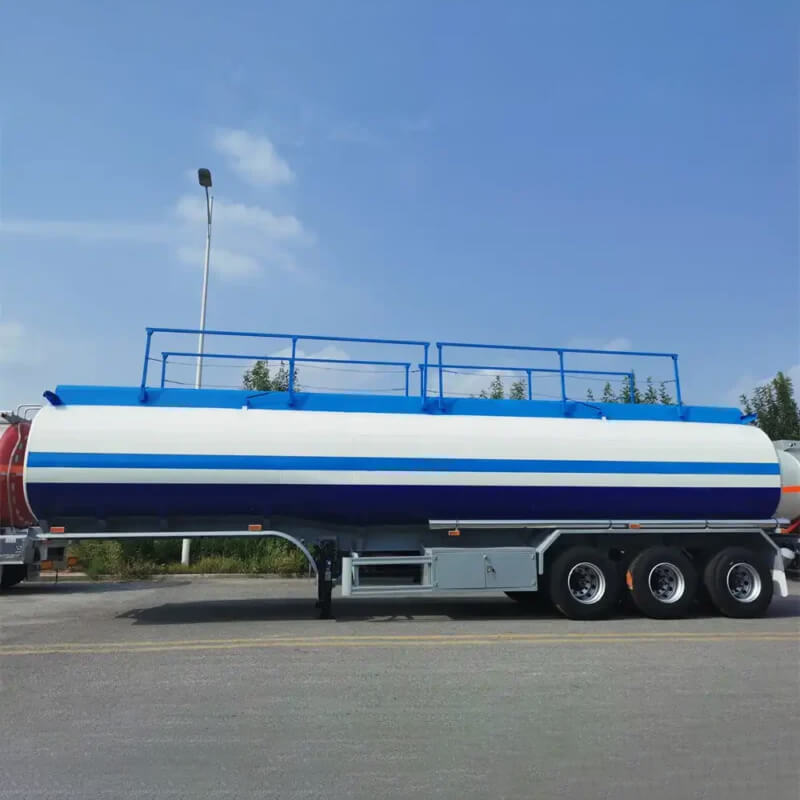

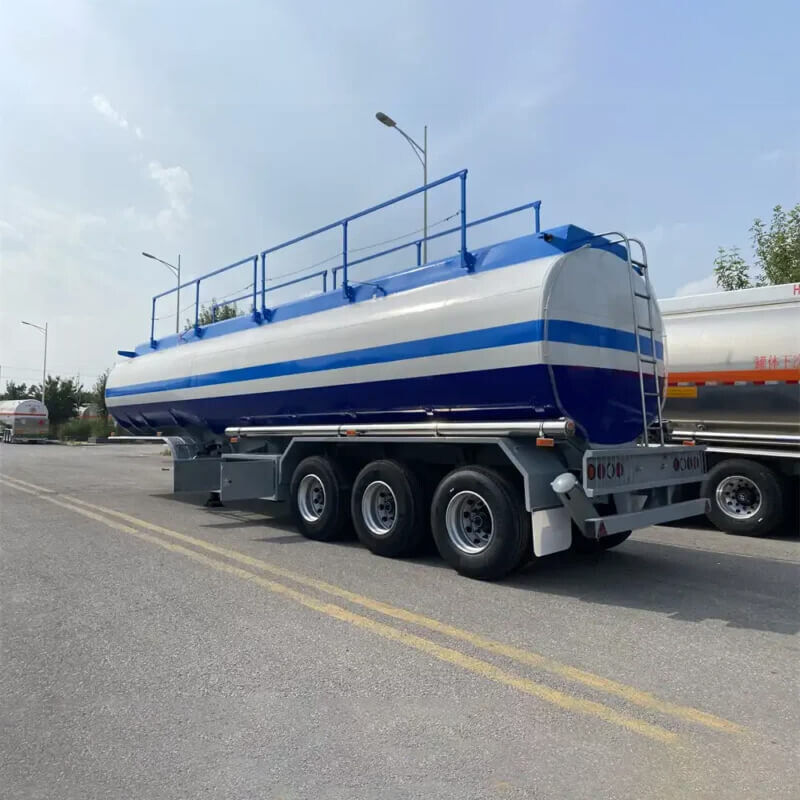

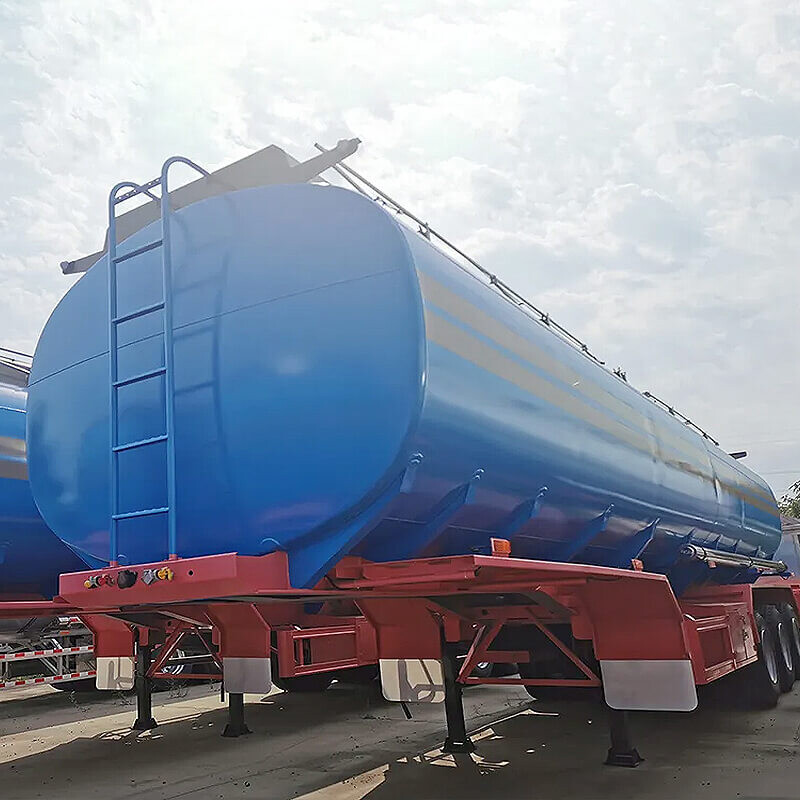

3 Axle 40000l Carbon Steel Tanker Trailer
3 Axle 40000l Carbon Steel Tanker Trailer
3 Axle 40000l Carbon Steel Tanker Trailer
3 Axle 40000l Carbon Steel Tanker Trailer
3 Axle 40000l Carbon Steel Tanker Trailer
3 Axle 40000l Carbon Steel Tanker Trailer
3 Axle 40000l Carbon Steel Tanker Trailer
3 Axle 40000l Carbon Steel Tanker Trailer
3 Axle 40000l Carbon Steel Tanker Trailer
Dimension (L*W*H): 11,500*2,500*3,750 mm

Compartment: 3 (12,000L + 16,000L + 12,000L)

Capacity (kgs): 40,000L

Tare Weight (kgs): 9,200
Email : inquiry@zhtrailer.com
WhatsApp : +86 158 6359 5298
Tel : +86 158 6359 5298
Contact us
Products Description

Fuel tanker semi trailers are mainly used for transporting diesel and gasoline. The main materials include carbon steel tanks, aluminum tanks, stainless steel tanks… A 3-axle carbon steel tanks fuel tanker trailer typically transports 40000 liters of oil. There are manhole covers, anti slip sidewalks, and folding handrails above the carbon steel tanks fuel tanker trailer.

Carbon Steel Tank Trailer Specifications:

CARBON STEEL TANK TRAILER SPECIFICATIONS
Feature:Carries Fuel, Oil, and Petroleum
Dimension (L*W*H):11,500*2,500*3,750 mm (40,000L)
Model:XM9400GRY
Material:Carbon Steel
Compartment:3 (12,000L + 16,000L + 12,000L)
Capacity (kgs):40,000L
Tare Weight (kgs):9,200
Kingpin:JOST BRAND Bolt-In 3.5”
Landing Gear:JOST BRAND 19”
Tire Size:Triangle Brand 11R22.5 (14 sets)
Rim Size:9.00*22.5 (13 sets)
Axle:BPW Brand 12 Tons, 3 Axle
Leaf Springs:Steel Suspension with 8pcs of Leaf Springs
Brake System:RE 6 Relay Valve
Manhole:Aluminum Alloy Ø500mm (20”) Manhole with Aluminum Alloy Cover and Breather Valve
Discharge Valve:Aluminum Alloy Discharge Valve with Cover
Foot Valve:Pneumatic Control DN80 Aluminum Alloy Foot Valves
Pneumatic Control System:1 Set Pneumatic Control Combined Switch, 1 Unit Emergency Switch
Discharge Hose:2 Units 3”×6M Factory PVC Hose with Quick Coupling on Both Ends
Vapor Recovery & Overfill System:Optional
Fire Extinguisher Carrier:2 Units at the Left Rear of the Tanker, Including 2 Units 8kg Dry Powder Type Fire Extinguishers Inside
Electric System:One Unit of 24V 7-Pin ISO Standard Socket; with Brake Light, Turn Light, Reverse Light, Side Light, Reflector, Fog Light; One Set of 6-Pin Standard Cable
Prime & Topcoat Painting:S.A.2.5 Standard Sandblasting; Zinc-Rich & Polyurethane Painting
We can build the trailers according to the customer’s design and requirements.

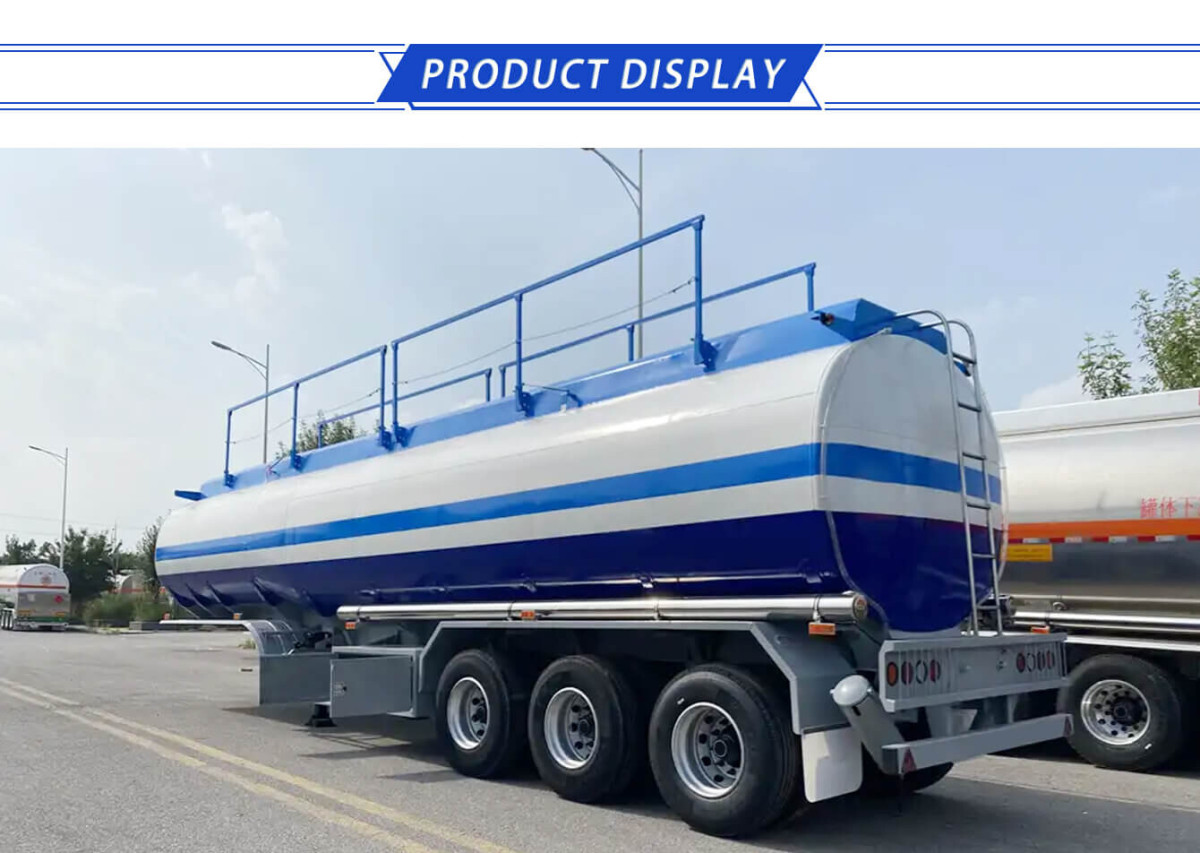

3 axle carbon steel tanks fuel tanker trailer (1).jpg

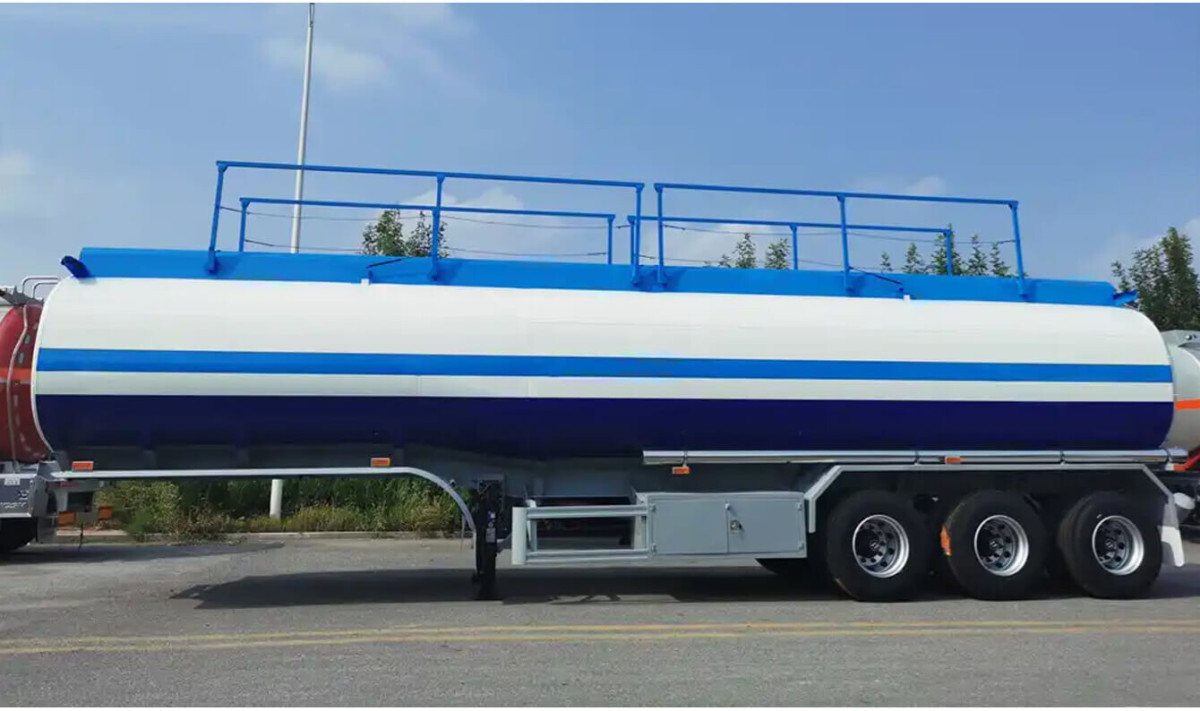

3 axle carbon steel tanks fuel tanker trailer (2).jpg

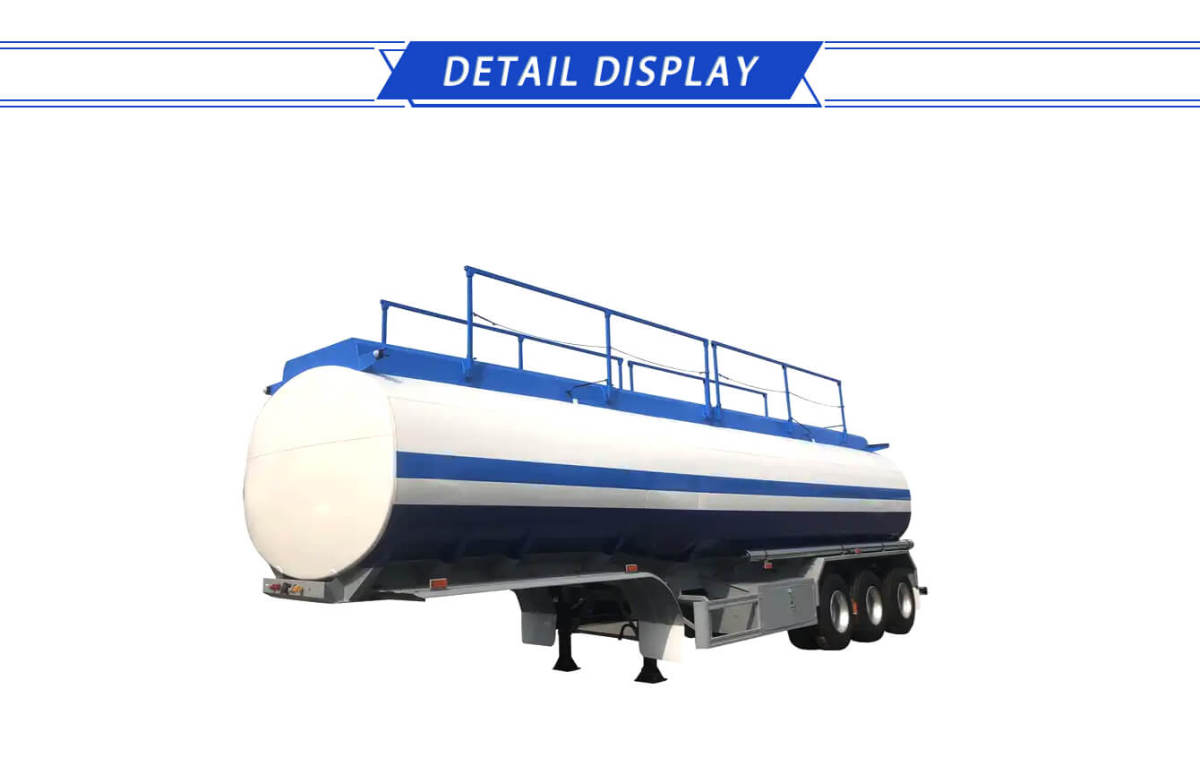

3 axle carbon steel tanks fuel tanker trailer (3).jpg

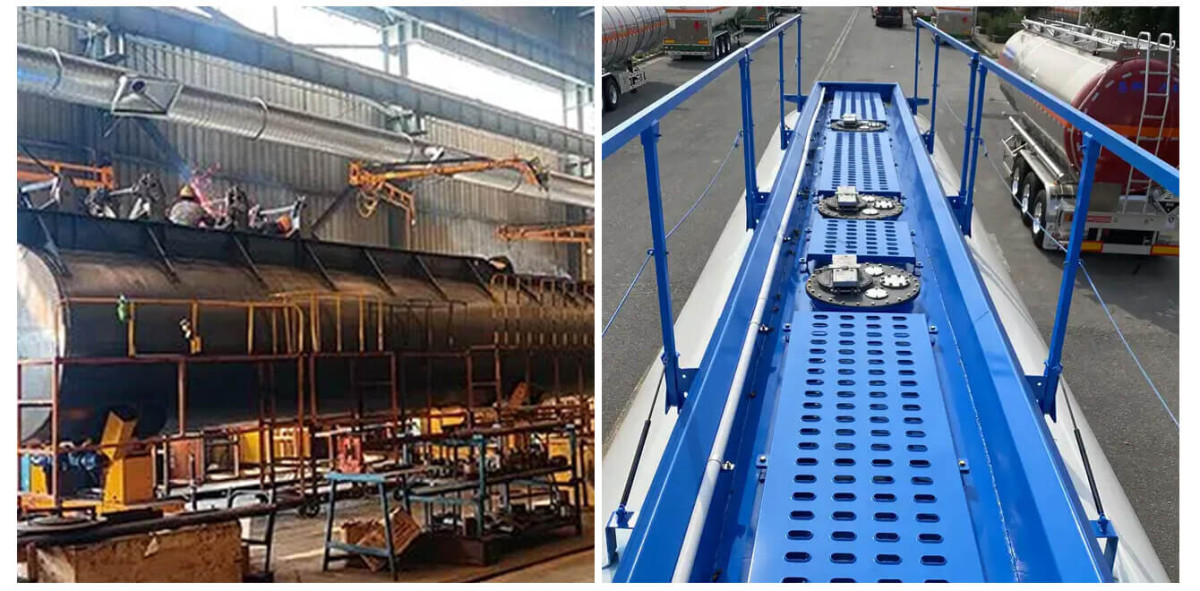

3 axle carbon steel tanks fuel tanker trailer (4).jpg

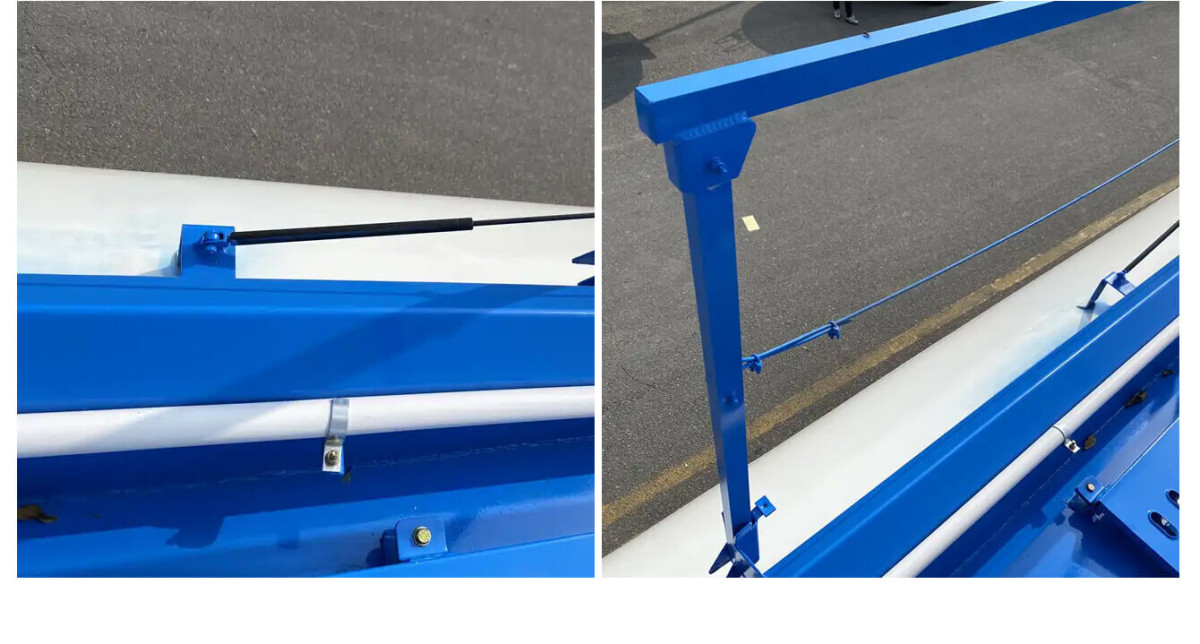

3 axle carbon steel tanks fuel tanker trailer (5).jpg

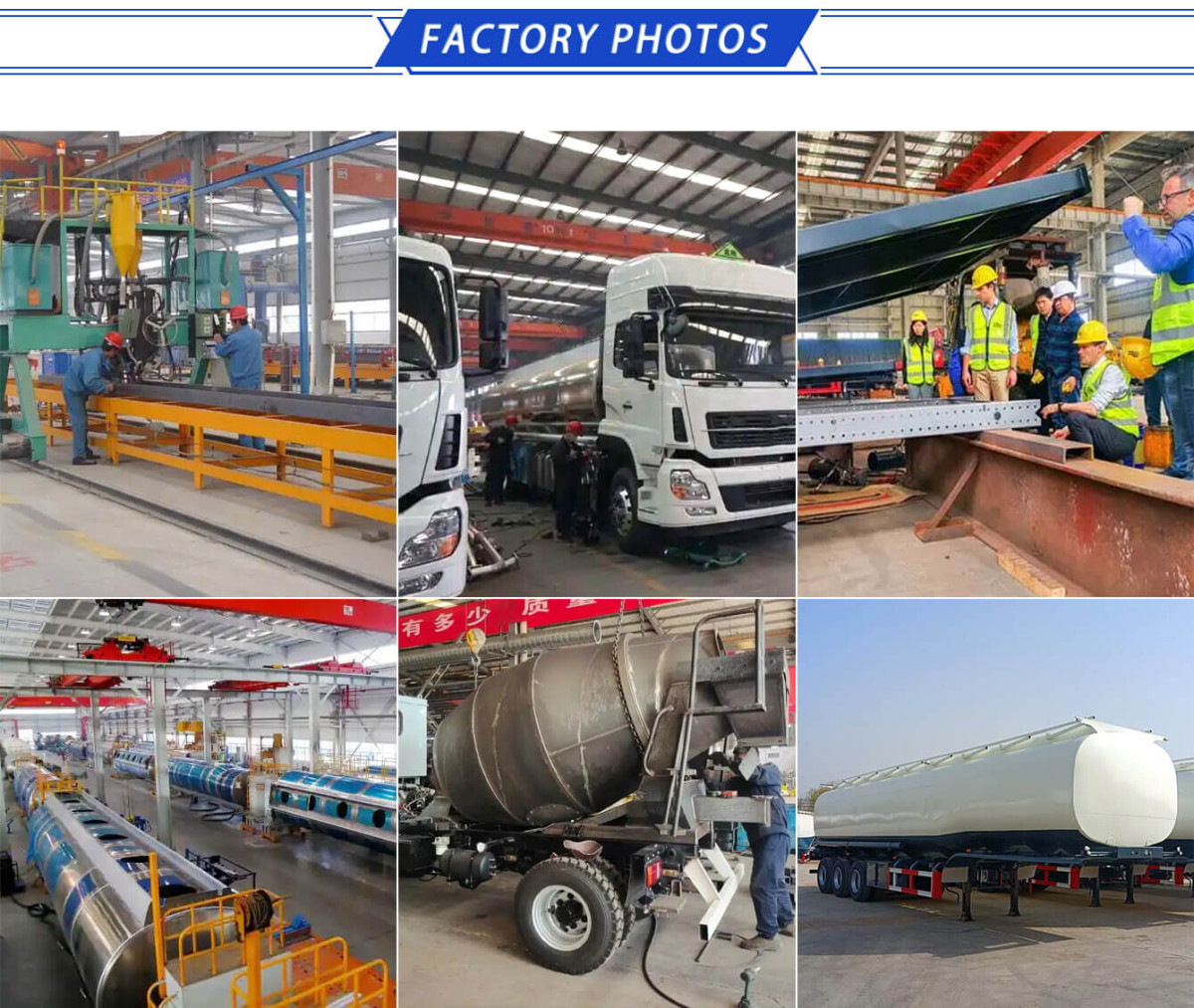

3 axle carbon steel tanks fuel tanker trailer (6).jpg
