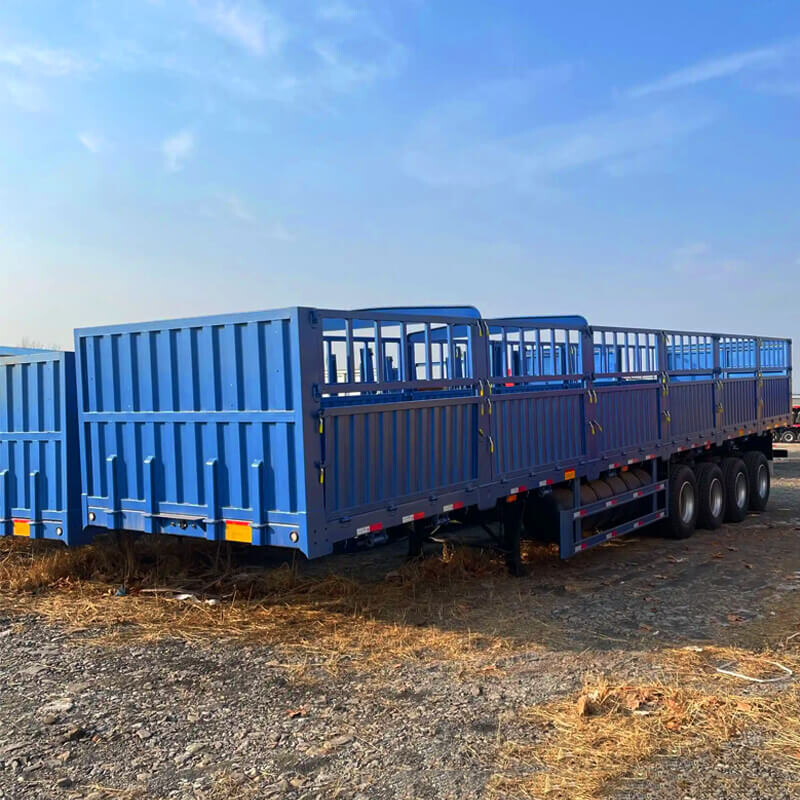

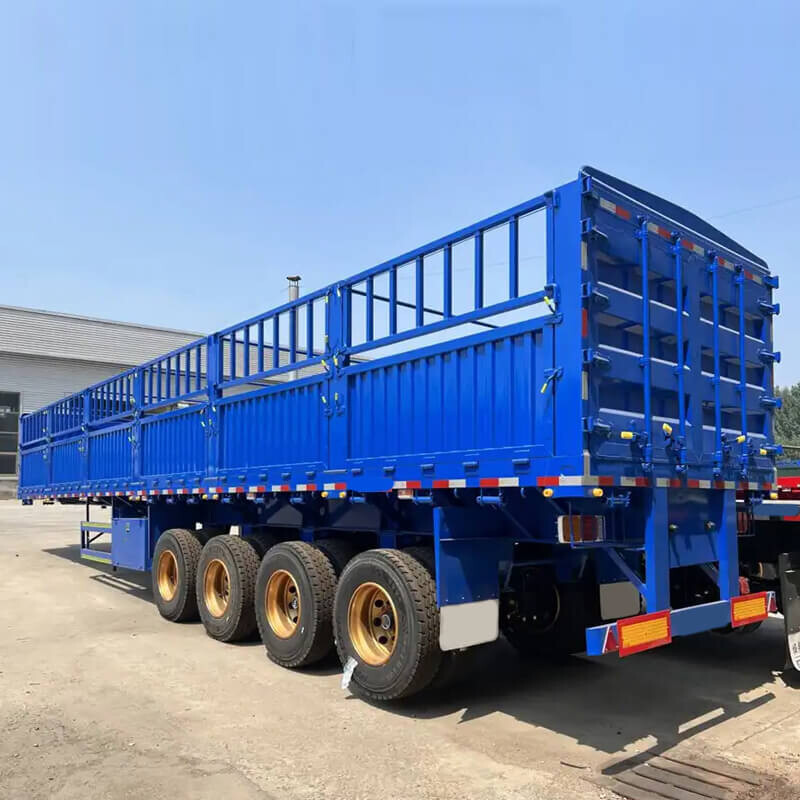

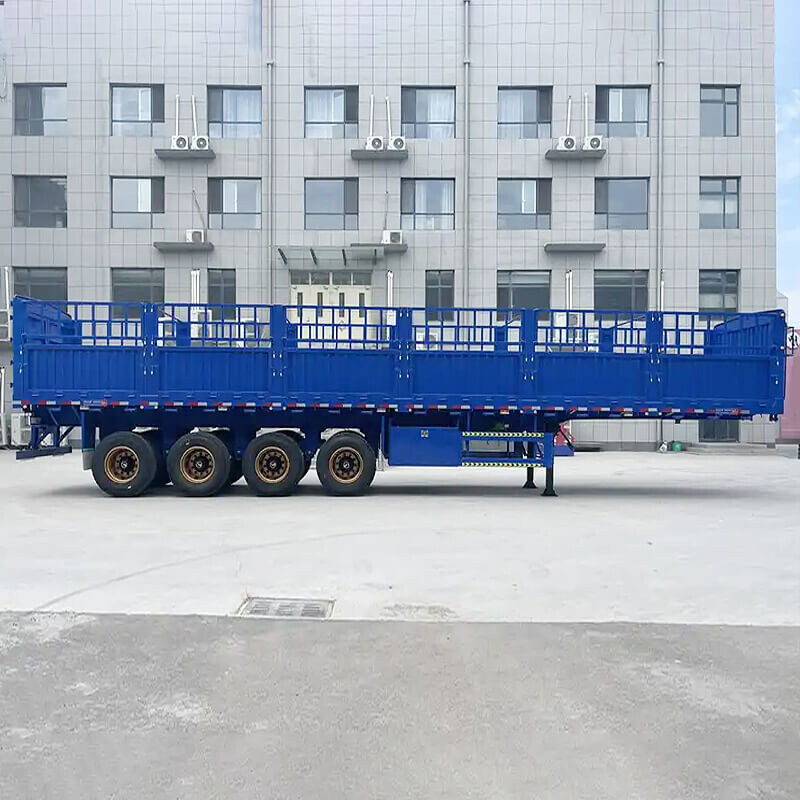

Stake Semi Trailer For Sale
Overall dimension: 13000x 2500x3350mm

Loading capacity: 60-80ton

Axles: 4 axles

Suspension: Mechanical suspension

Sidewalls height: 1800mm
Contact us
Products Description
Stake Semi Trailer: Description

Stake semi trailers are essential in the transportation industry, particularly for freight stations and express companies. They are commonly used to transport a variety of goods, including vegetables, fruits, clothes, household appliances, daily necessities, and even livestock like sheep and cattle.

Stake Semi Trailer Specification

FENCE SEMI TRAILER SPECIFICATION
Payload60,000kg
Tare weight73,000kg
Dimension13000x2500x1550mm (with removable fence 2200mm)
Wheelbase1310mm
Main beamBeam height 500mm, upper plate 14mm, bottom plate double 8mm, middle plate 16mm, made of Q345 steel
Cross/side beamQ235, channel steel
Floor3mm diamond steel plate
PaintingComplete chassis sandblasting to clean rust, coat of anti-corrosive primer, 2 coats of final paints
Tool box1 piece
Axle4 x 16ton FUWA Axle
SuspensionMechanical suspension
Leaf spring90(W)mm*16(thickness)mm*10 layers
Tyre12R22.5, 16pcs, Triangle tire Rim 9.0-22.5
KingpinJOST King Pin bolt-in type 50mm
Landing gearDouble speed, external 28 tons
Brake systemWABCO valve dual-line braking system
Electrical system1 voltage 24V, 2 receptacle: 7 ways (7 wire harness), tail lamp with turn signal, brake light & reflectors, side lamp etc. One set 6-core standard cable.

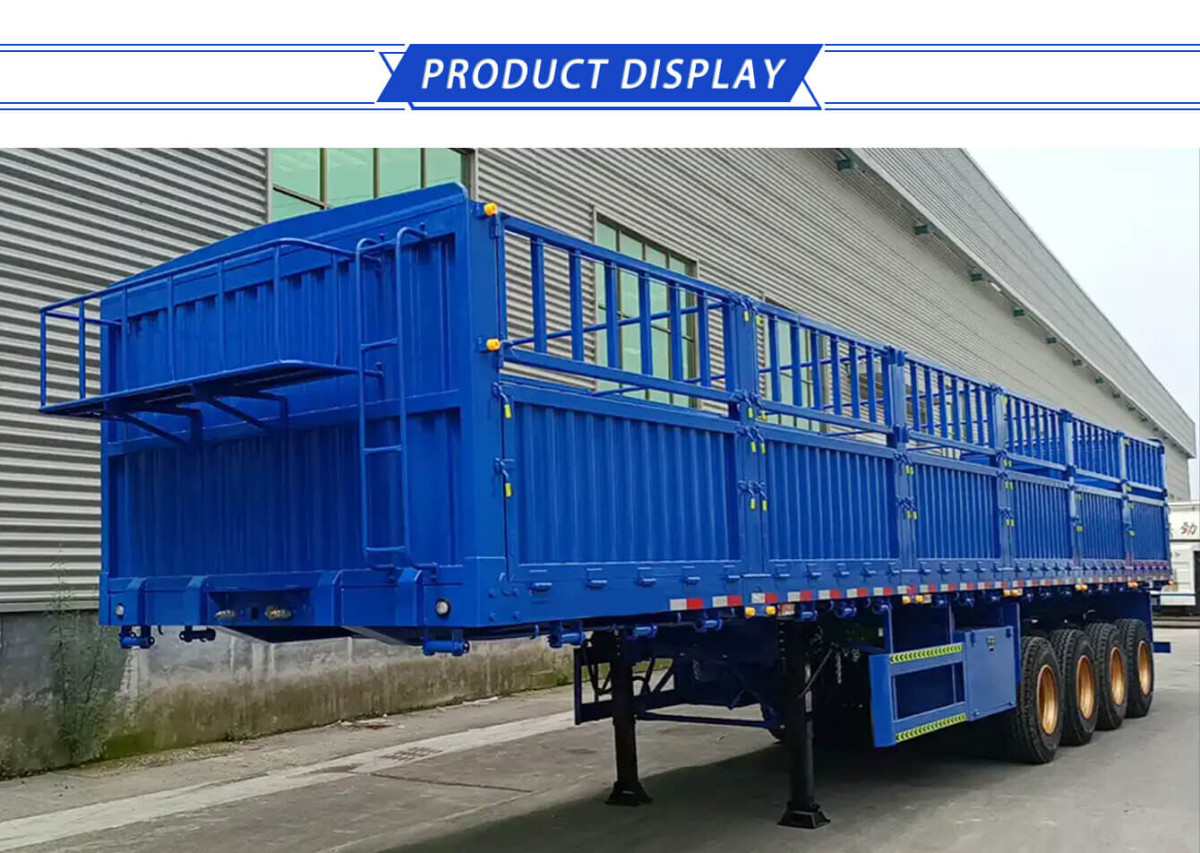

stake semi trailer  (1).jpg

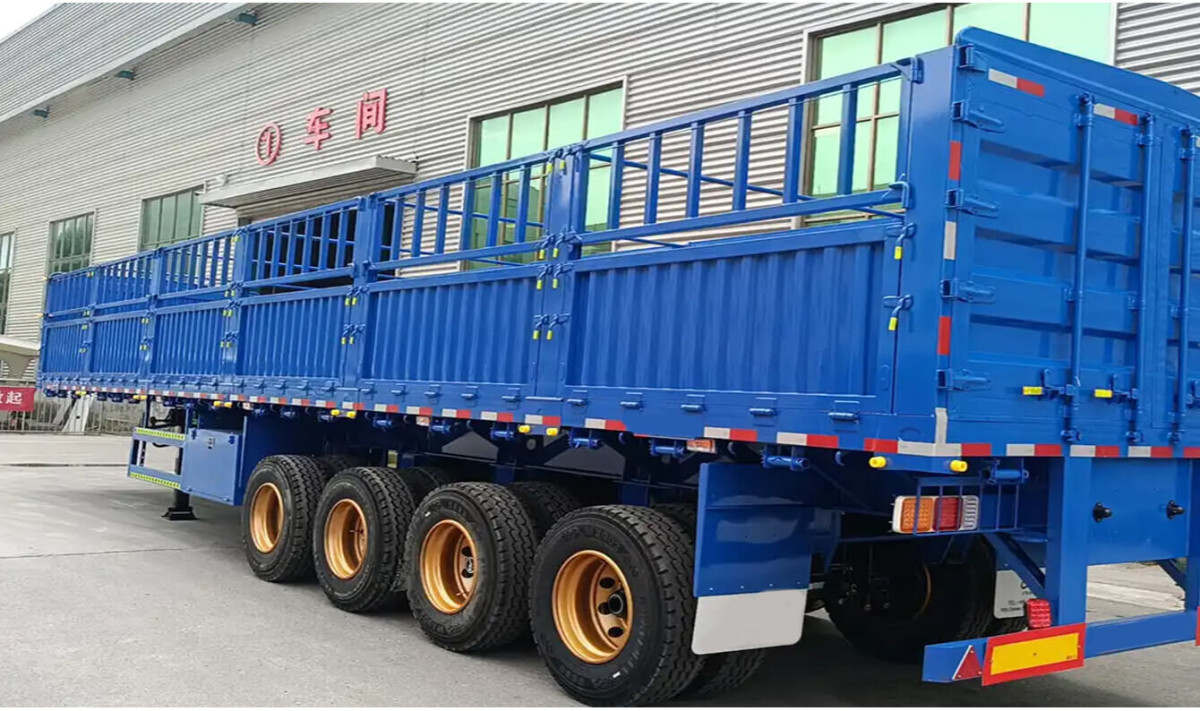

stake semi trailer  (2).jpg

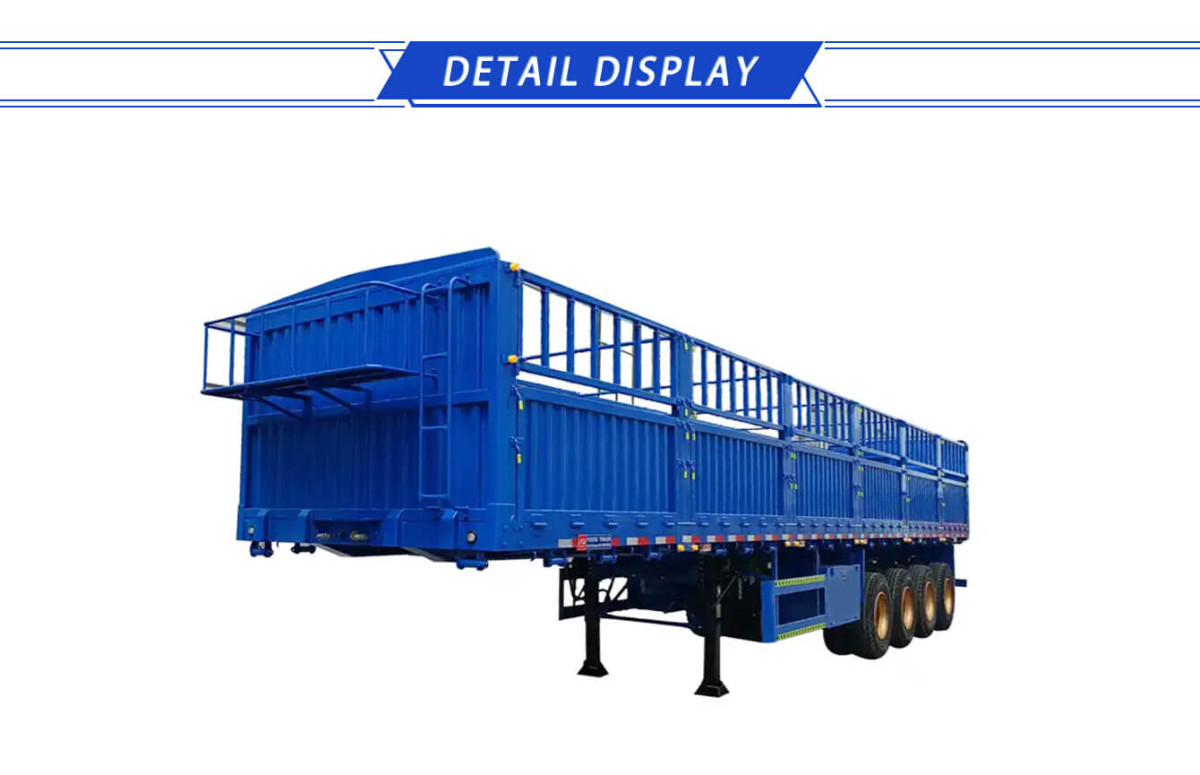

stake semi trailer  (3).jpg

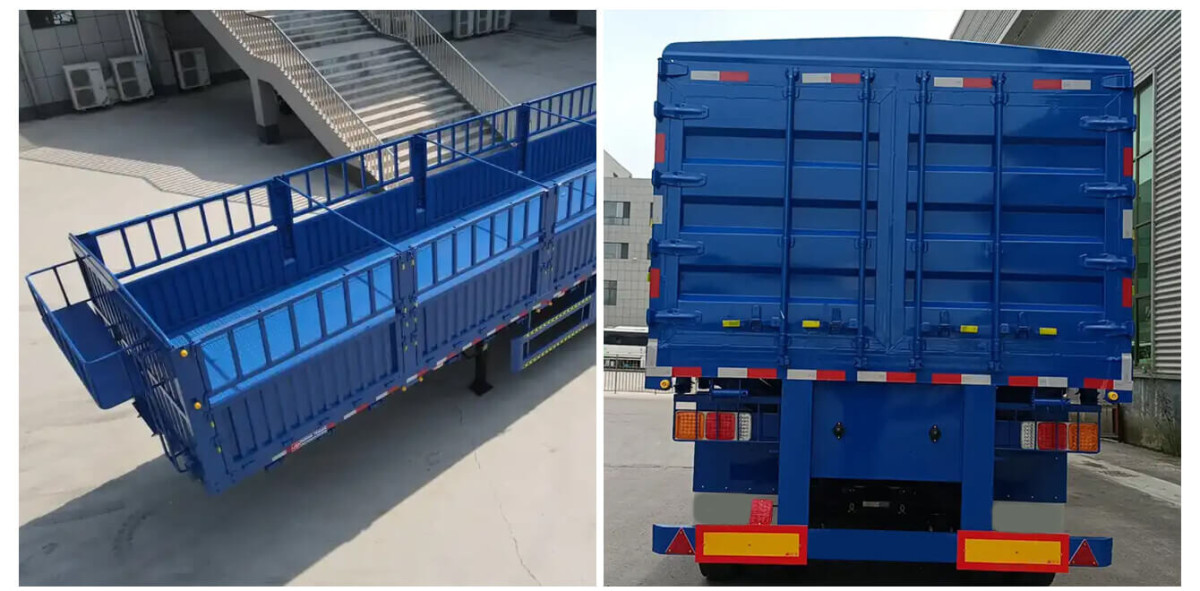

stake semi trailer  (4).jpg

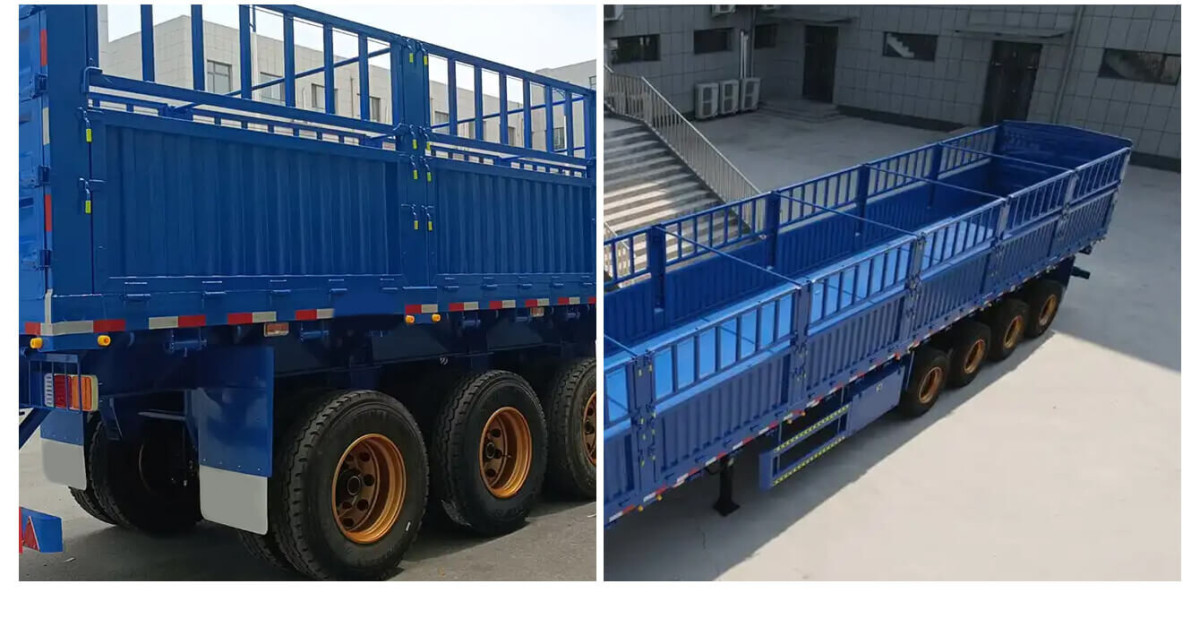

stake semi trailer  (5).jpg

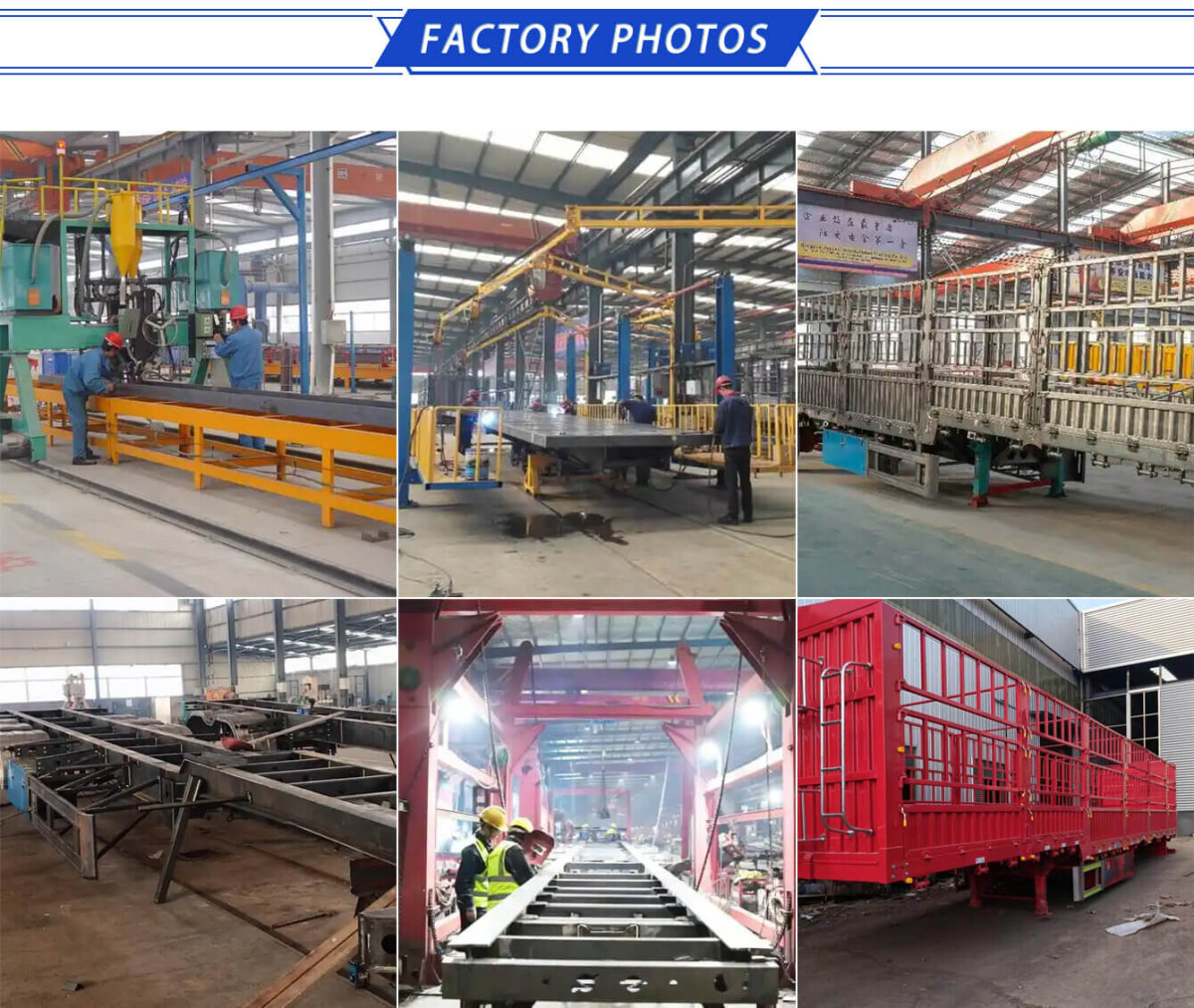

stake semi trailer  (6).jpg
