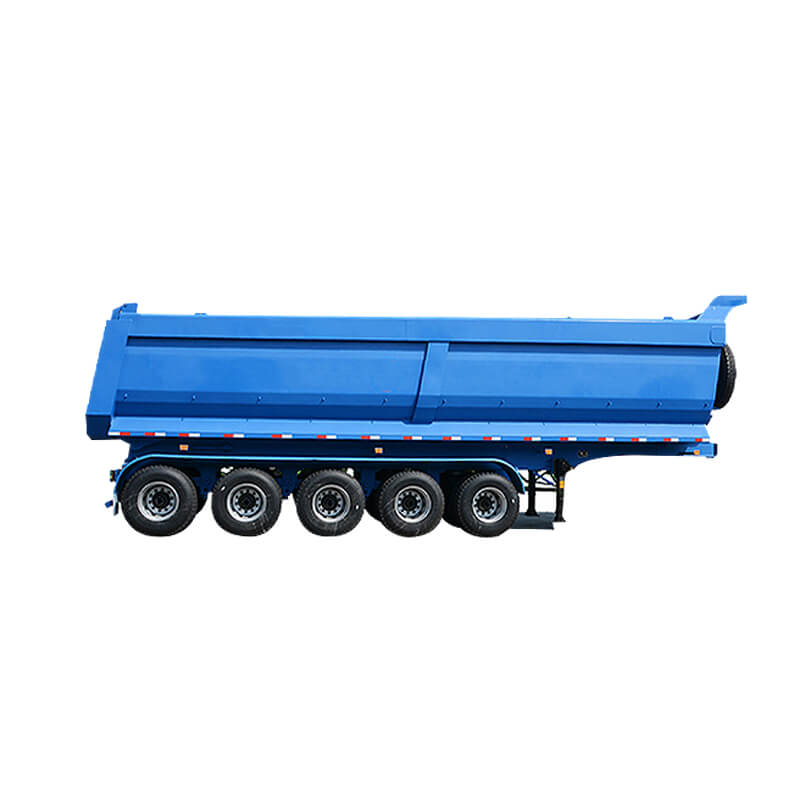

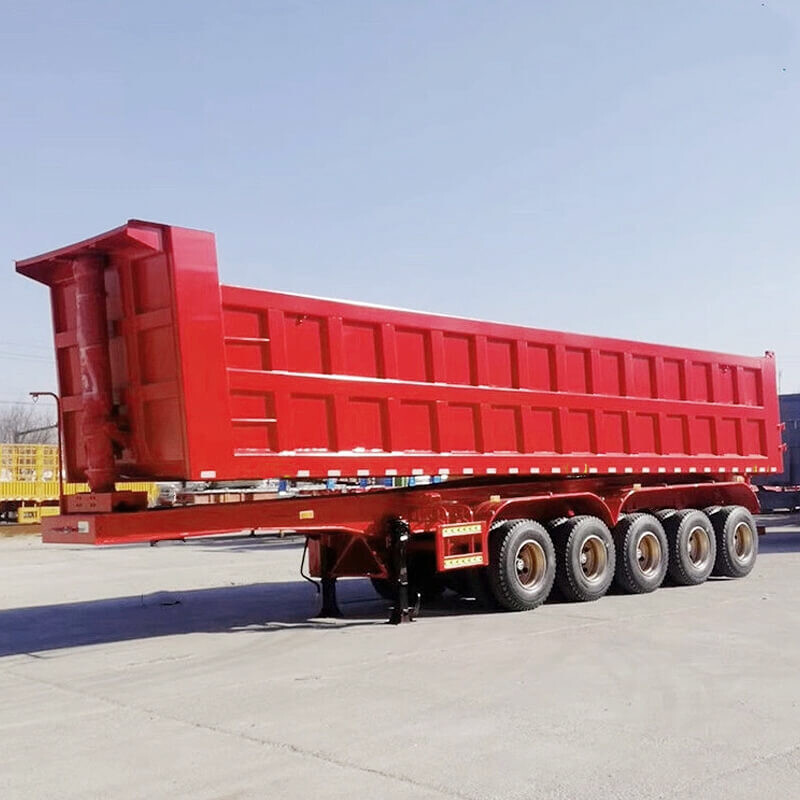

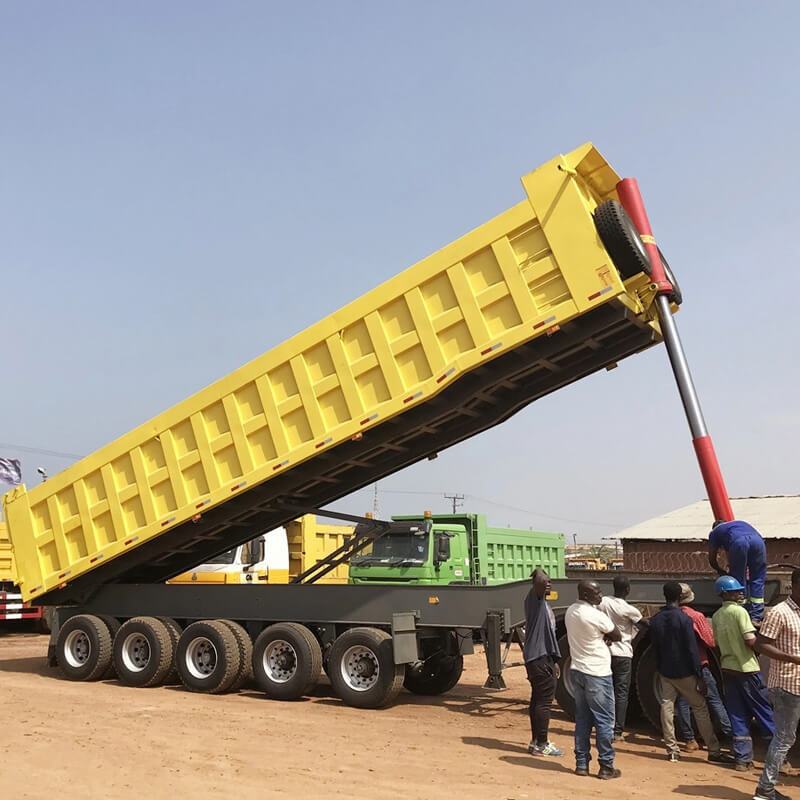

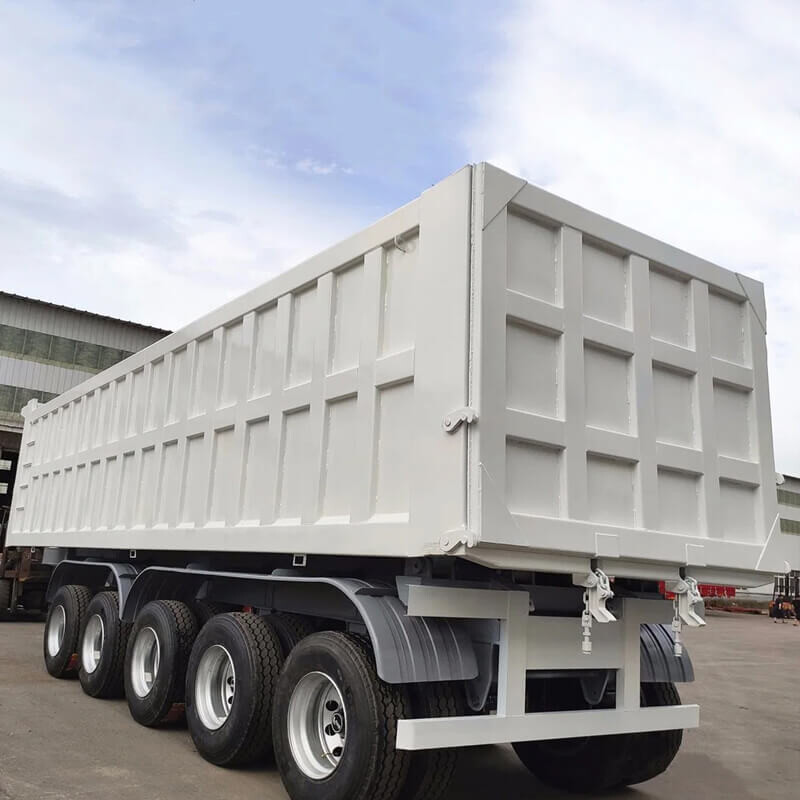

5 Axles U Shape Tipper Trailer
Place Of Origin: Shandong, China

Bucket Volume: 38CBM

Max Capacity: 100Tons

Axles: 5 Axles
Contact us
Products Description

Widely usage in transport sand, rocks, bauxite, grave etc construction materials and heavy duty strong body type 5 axles tipper semi trailers for Ghana customers. The chassis build with thick high tensile steel plate to ensure the durability. For customers described rough road conditions, we also designed not only strong tipper trailers, but also with accurate calculate of the angle of the lift cylinders.

Tipper Semi Trailer Specifications
Dimension:11050*2500*3850mm (Customized)
Bucket10300*2400*1800mm
Load Capacity:80-100Ton
UsageTransport sand, rock, gravel etc construction materials
CylindersHeavy duty lifting system
Main Beam:High tension carbon steel
Painting:Complete chassis sand blasting to clean rust,1 coat of anti-corrosive prime,2coats of final paints
Axle:Heavy duty FUWA/BPW/Chinese Brand
Suspension:Mechanial / Air Suspension
King Pin:2” or 3.5”
Landing Gear:28T lifting capacity with two speed
Tire:12.00R20
Brake System:WABCO, ABS Optional
Leaf Spring:90mm(W)*16mm(T)*10 Layer (Option:90/16/10;100/16/10)
Electrial System:24V; 7 ways receptacle; LED lamps
Accessories:One tool box, one spare tire carrier
Colour and Marking:Comply with the customer’s requirement

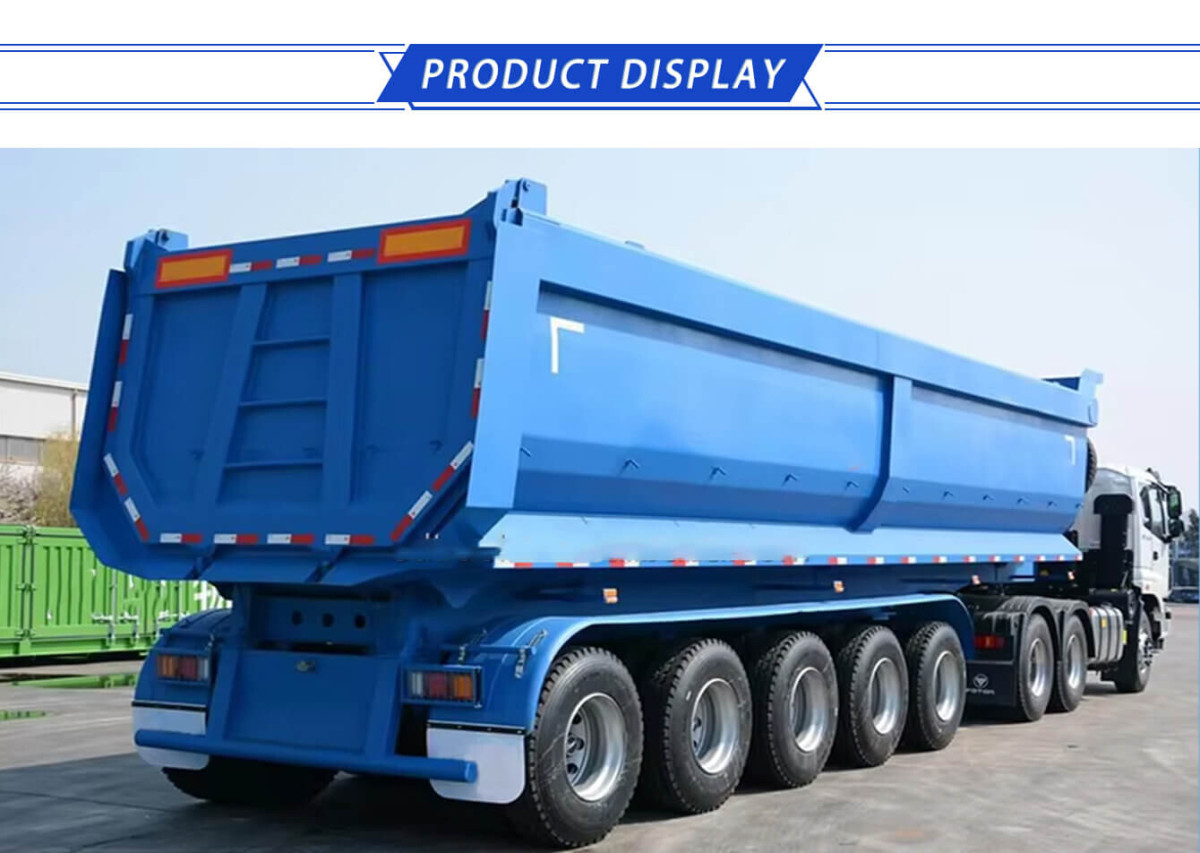

5 axles U Shape Tipper Trailer (1).jpg

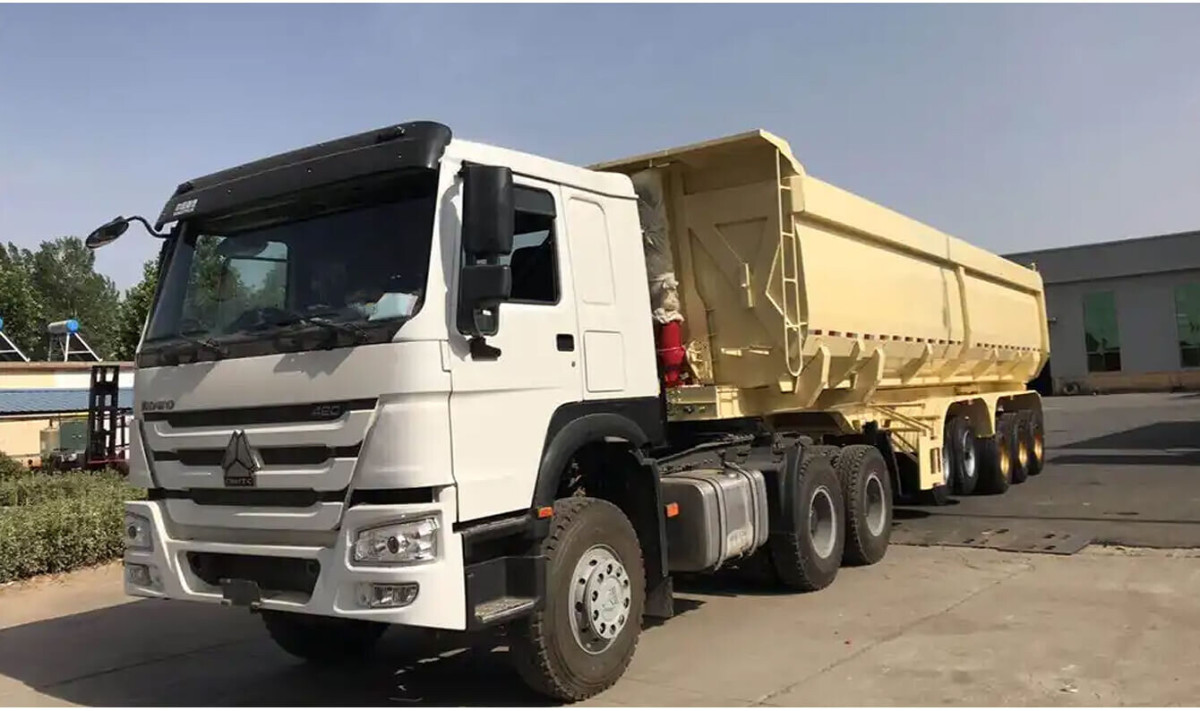

5 axles U Shape Tipper Trailer (2).jpg

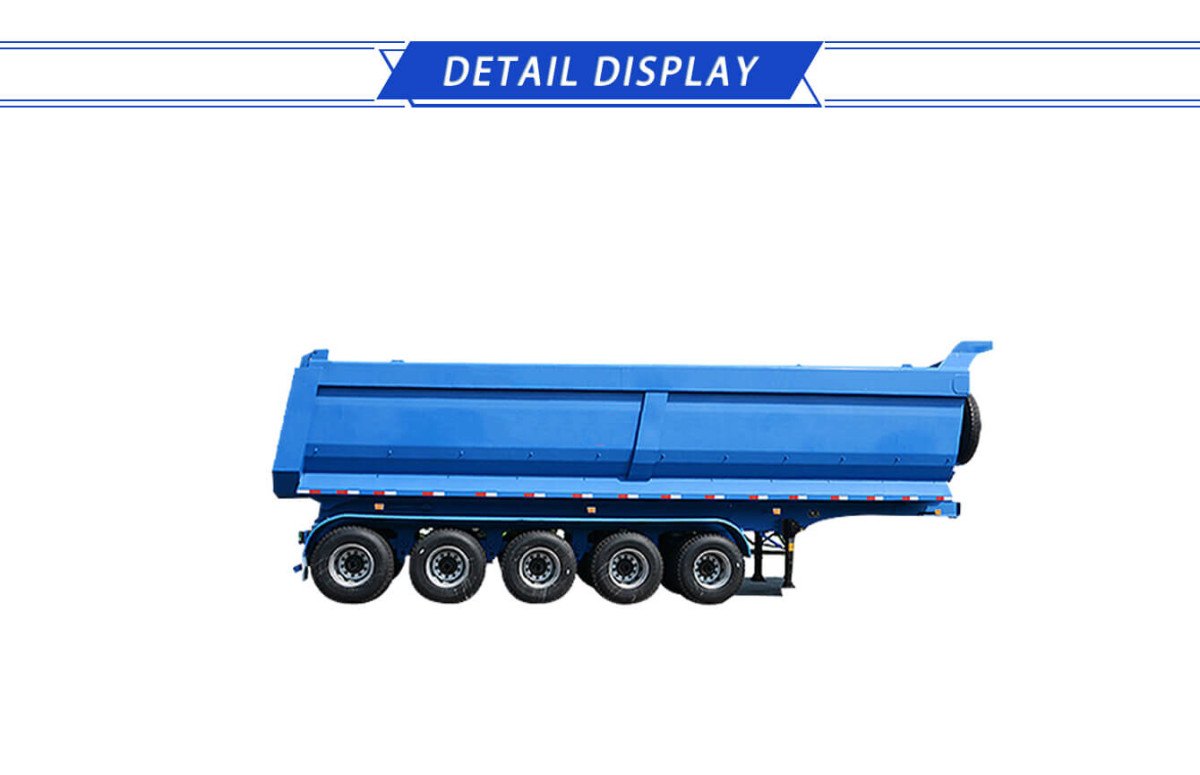

5 axles U Shape Tipper Trailer (3).jpg

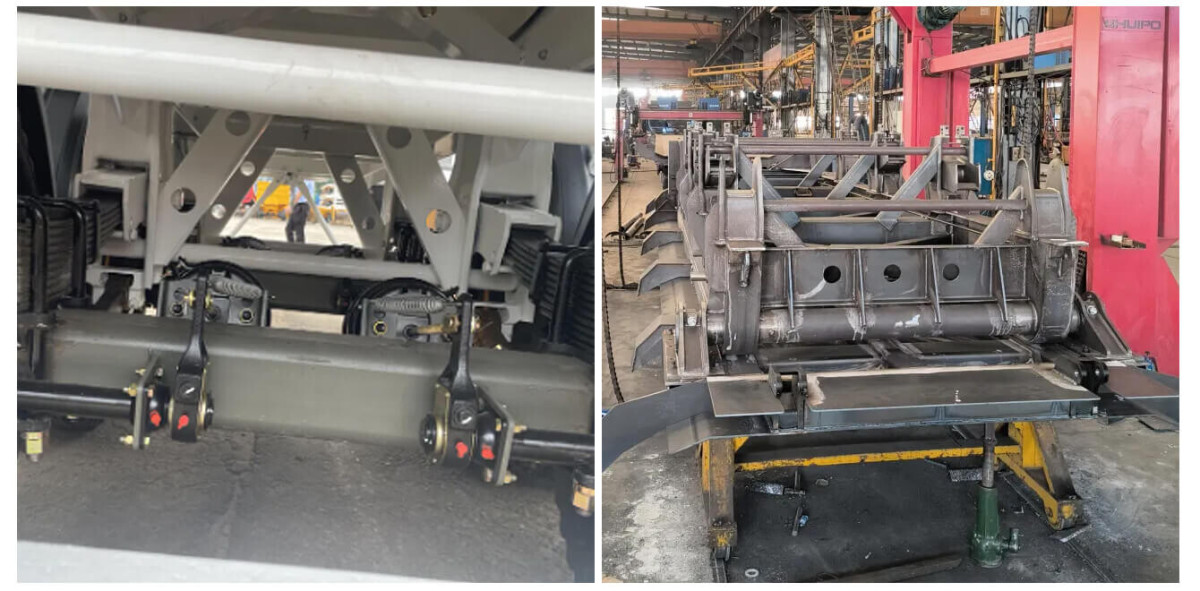

5 axles U Shape Tipper Trailer (4).jpg

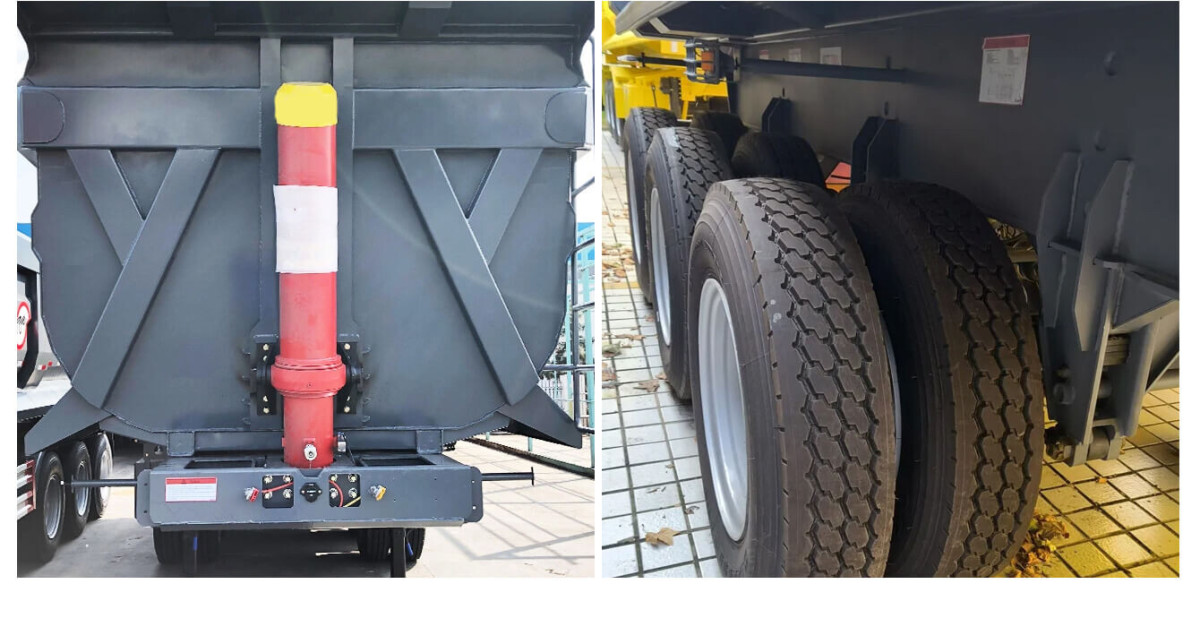

5 axles U Shape Tipper Trailer (5).jpg

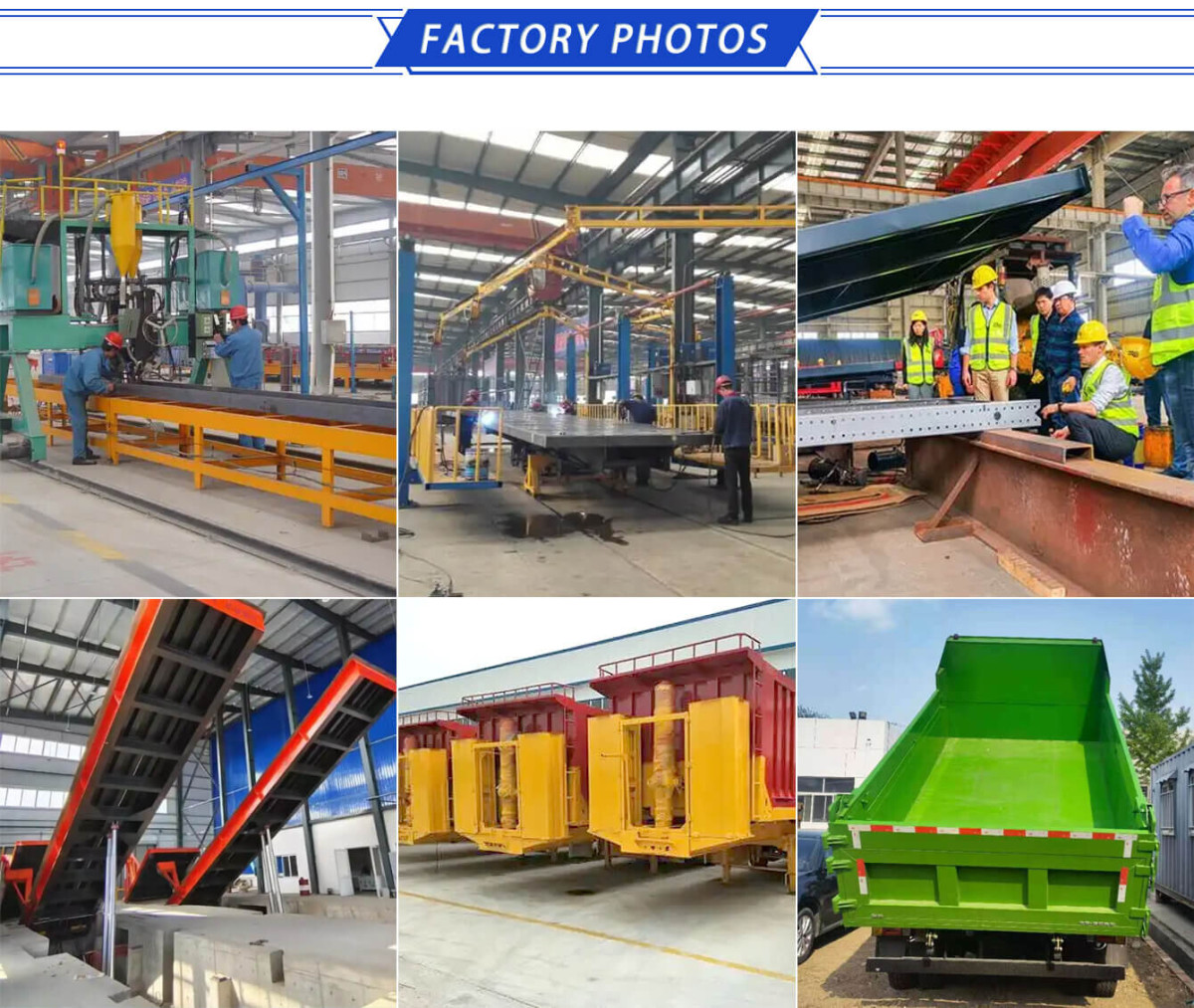

5 axles U Shape Tipper Trailer (6).jpg
