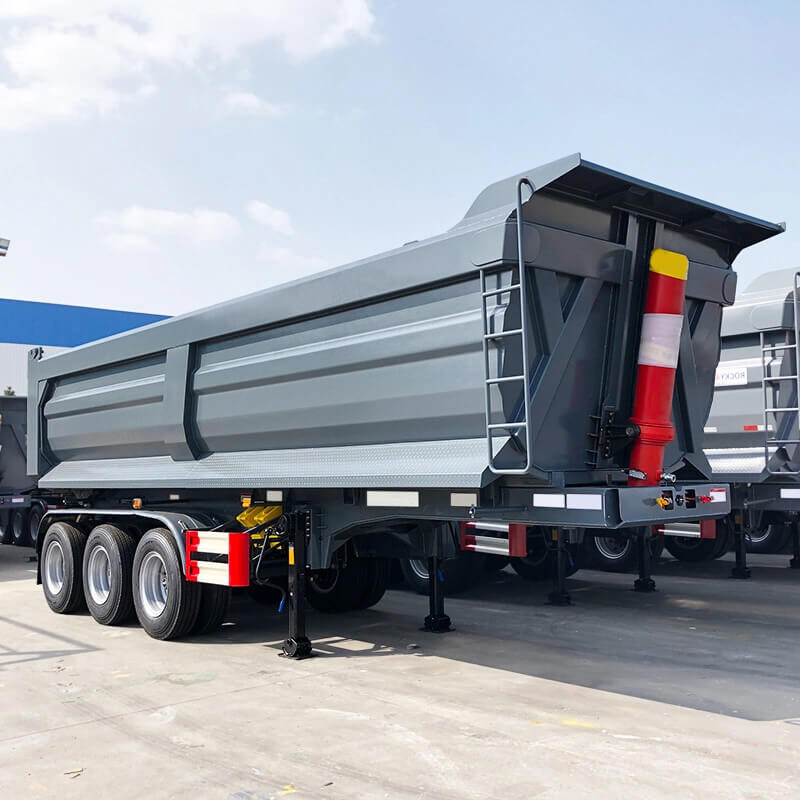

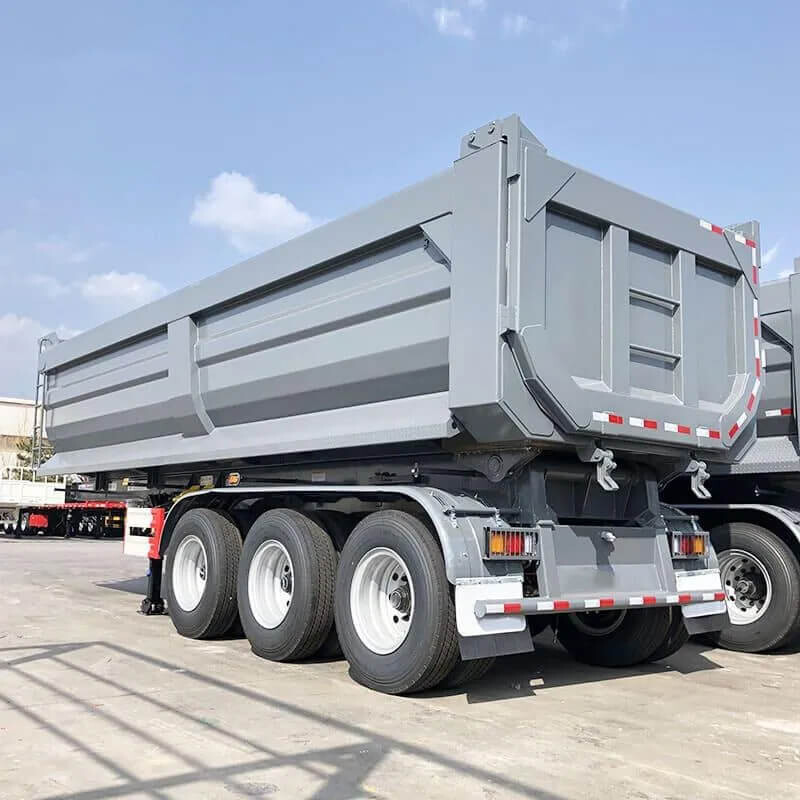

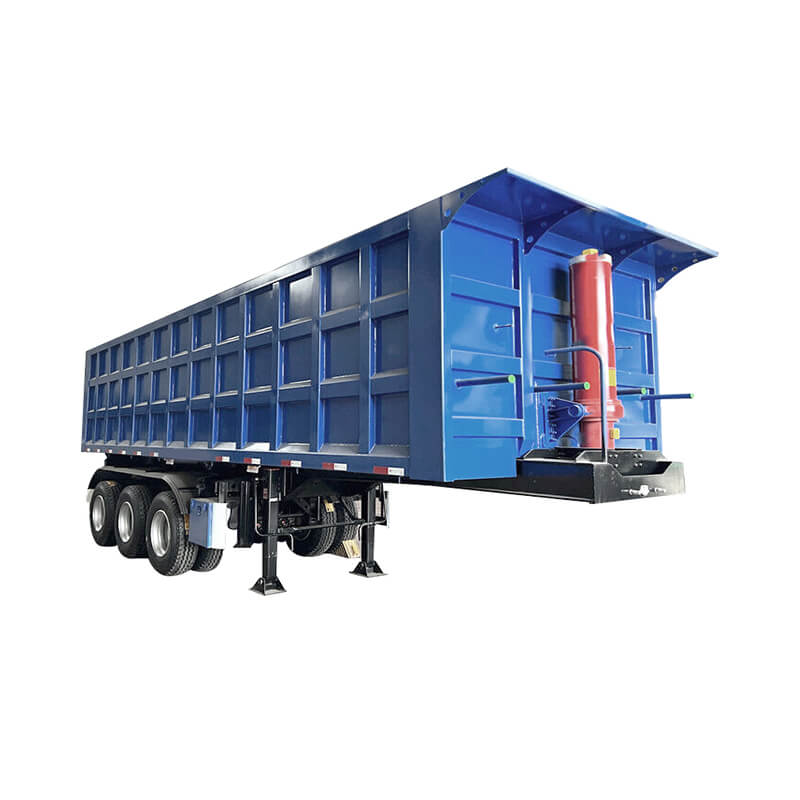

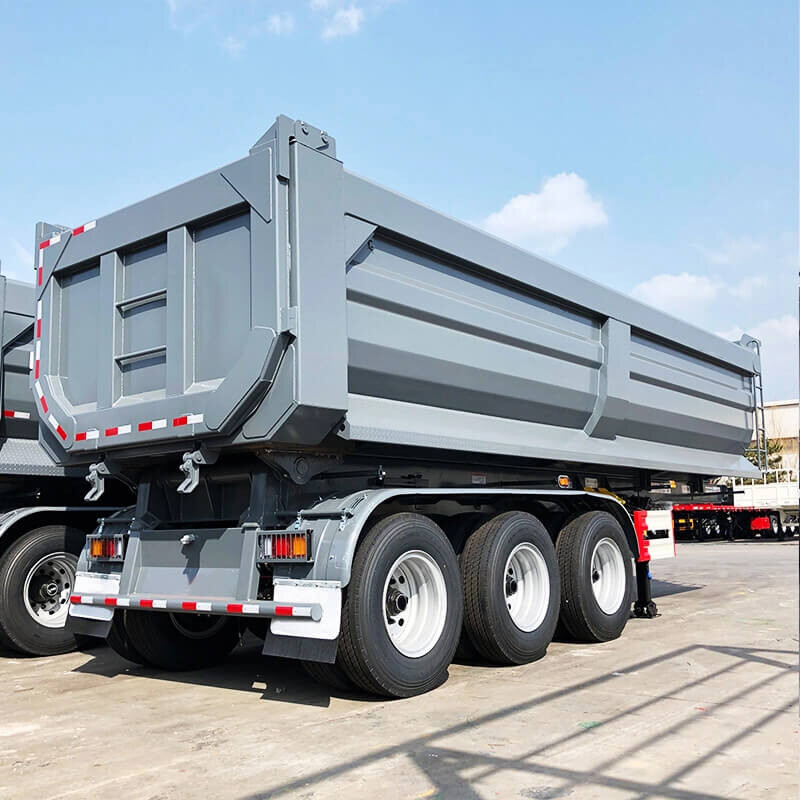

Zonghui heavy duty build 3 axles square type tipping semi trailer. Customer from the West African coast country, sign the contact to transport coal, Start with one unit as trial order, customer come visit our factory to check our tipper semi trailer, very like and satisfy with our work. This tipper semi trailer we build with high tensile good quality raw material for the bucket and chassis, make sure the good performance on the mud and rough road conditions which customer transport routine.
Tipper Semi Trailer Specifications |
Dimension: | 9600*2500*3450mm (Customized) |
Bucket | 9000*2400*1500mm |
Load Capacity: | 50Ton |
Usage | Transport sand, rock, gravel etc construction materials |
Cylinders | Heavy duty lifting system |
Main Beam: | High tension carbon steel |
Painting: | Complete chassis sand blasting to clean rust,1 coat of anti-corrosive prime,2coats of final paints |
Axle: | Heavy duty FUWA/BPW/Chinese Brand |
Suspension: | Mechanial / Air Suspension |
King Pin: | 2” or 3.5” |
Landing Gear: | 28T lifting capacity with two speed |
Tire: | 12.00R20 |
Brake System: | WABCO, ABS Optional |
Leaf Spring: | 90mm(W)*16mm(T)*10 Layer (Option:90/16/10;100/16/10) |
Electrial System: | 24V; 7 ways receptacle; LED lamps |
Accessories: | One tool box, one spare tire carrier |
Colour and Marking: | Comply with the customer’s requirement |
