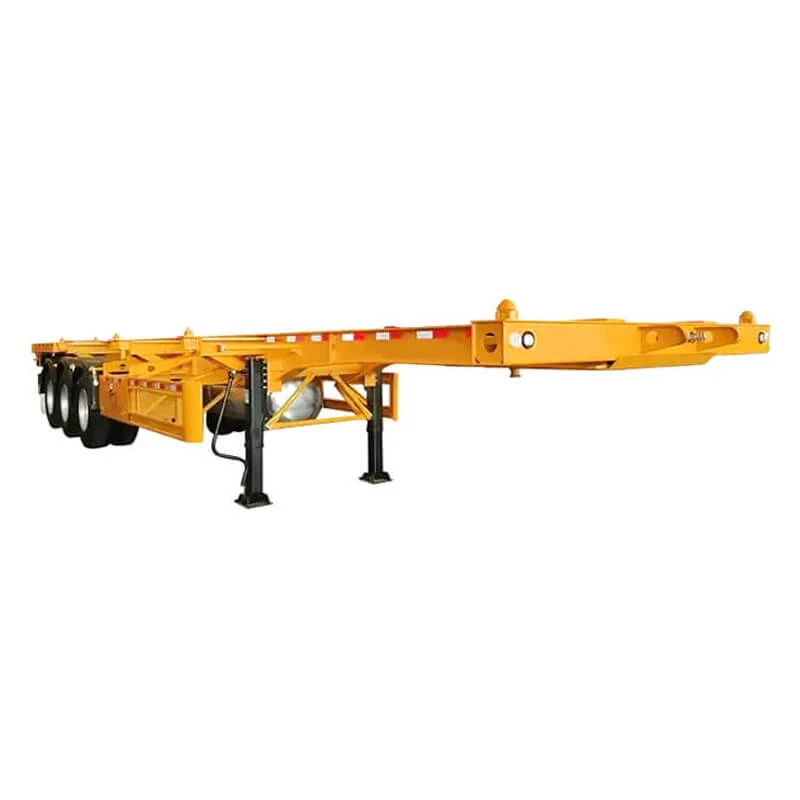

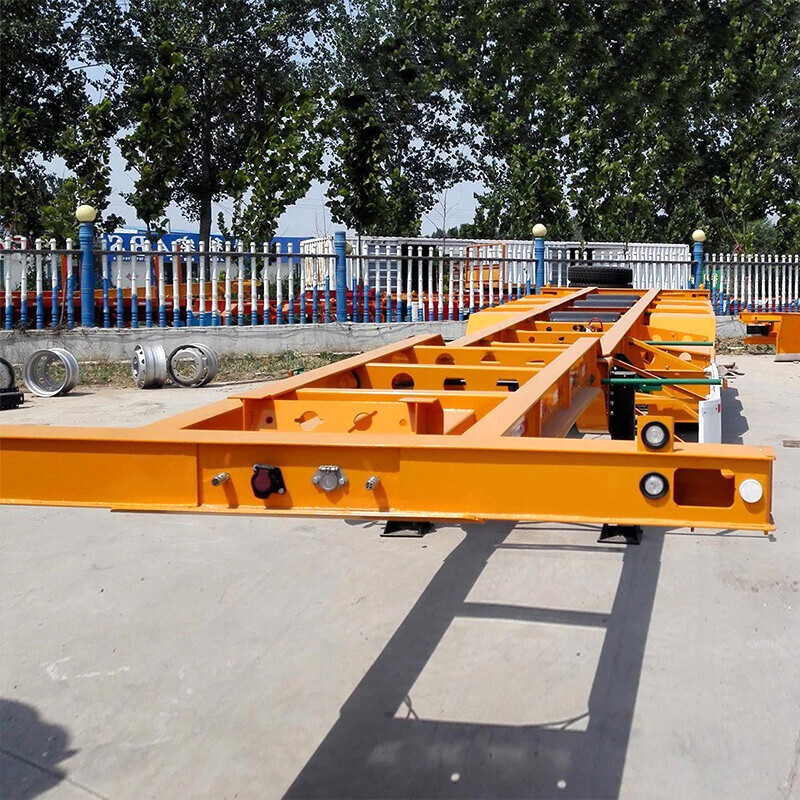

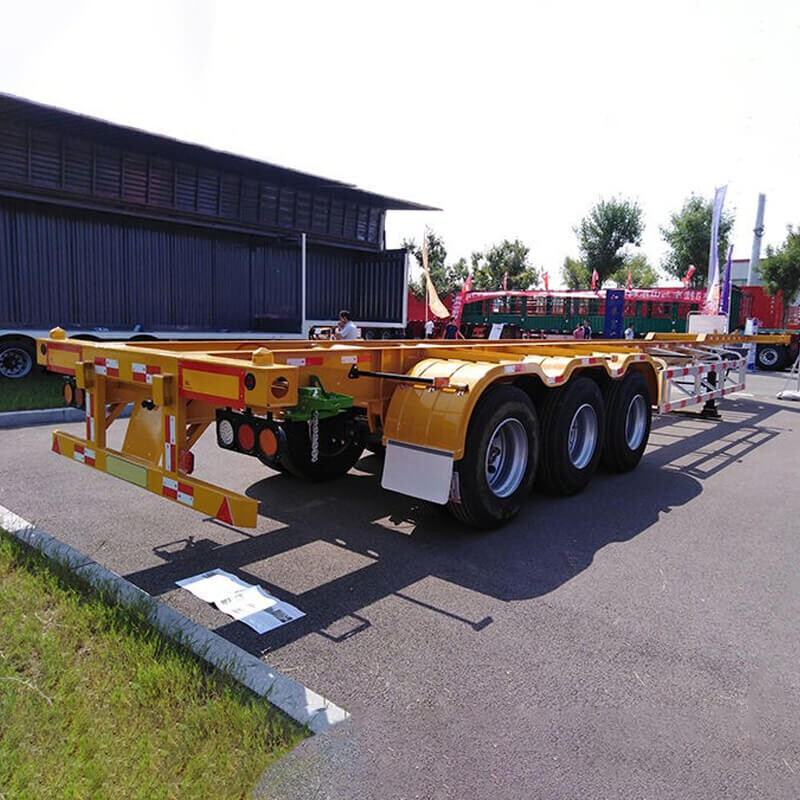

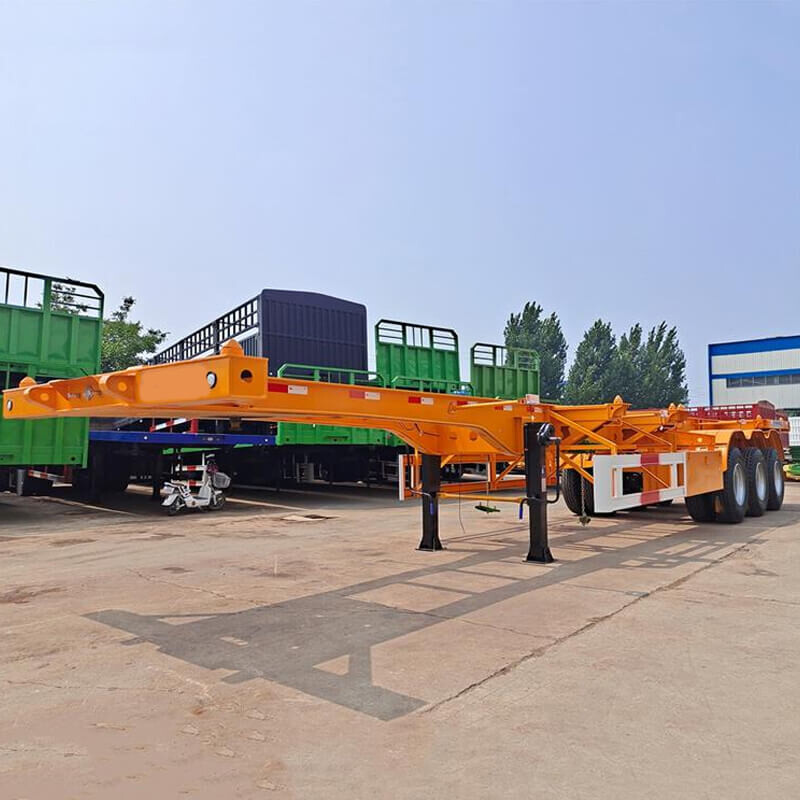

Skeleton Trailer For Sale
Payload: 40-80T
Axle: 3 Axles
Dimension: 1250mm×2500mm×1550mm
Contact us
Products Description
Skeleton trailer for sale is used to transport containers and are container trailers with a frame structure.

Our skeleton trailers for sale are made of high-strength Q345B steel, the structure is strong and stable. It can adapt to high-intensity work, and has a longer service life, which can bring more economic benefits.
It can be seen from the appearance that the structure of skeleton trailers for sale is simple, and its main structure is only the girder for load-bearing, the axle and tires for support. Therefore, the maintenance of skeleton trailers for sale is more convenient.

Skeletal Trailer Specifications


SKELETON TRAILER SPECIFICATIONS
Payload40-80T
Dimension1250mm×2500mm×1550mm
Main BeamTop 14mm, Middle 8mm, Bottom 16mm, height 500mm
Bottom plate: 16mm, Material: Q345B steel
Axle3pcs axles, 13tons BPW / FUWA brand
Twist Lock4,8,12 sets (lifting or screw type)
Tires12 units, 12.00R22.5 or 315/80R22.5
SuspensionMechanical suspension
Landing GearJost brand D200T or Chinese brand 28tons(double-speed), Jost brand 28T lifting capacity
Leaf Spring90mm(W)*16mm(T)*10 Layer
King PinJost brand 2.00 or 3.5 inch
Rim9.00-22.5 or 9.75-22.5
ABSOptional
LightLED light
Voltage24V
Socket7-pin Socket
ColorOptional
ToolboxCustomizable

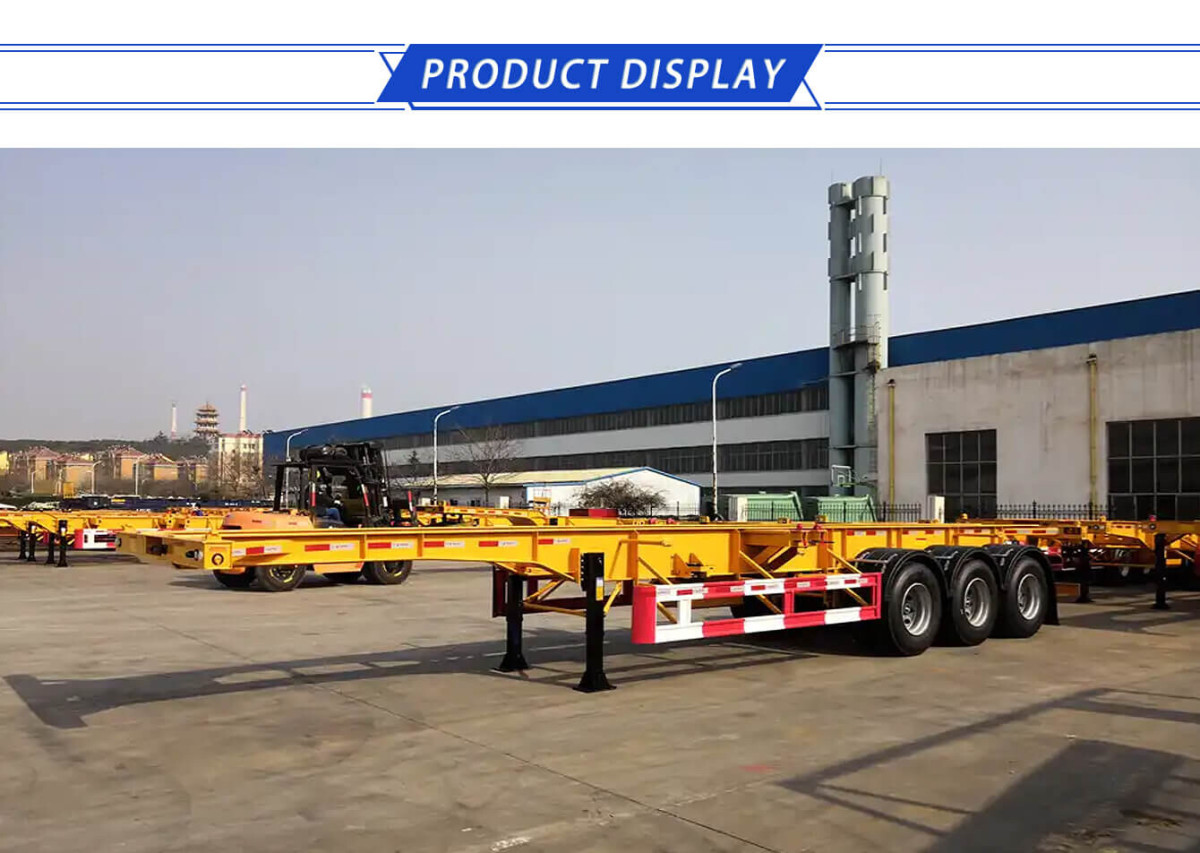

skeleton trailer  (1).jpg

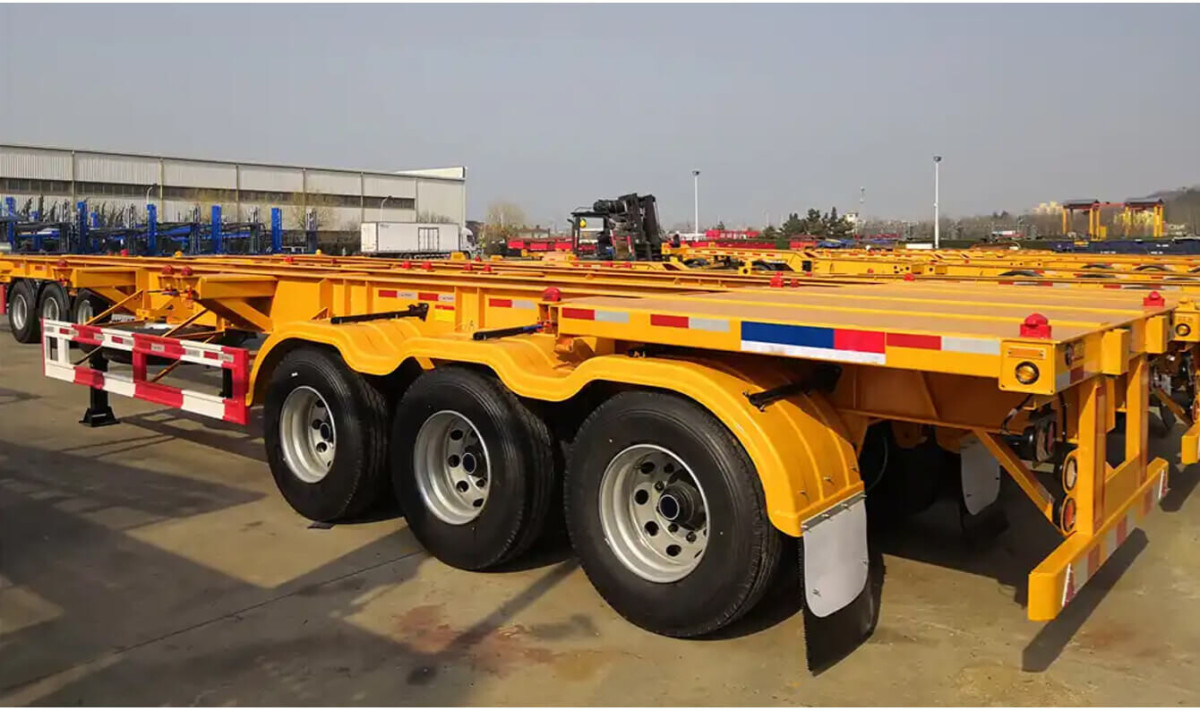

skeleton trailer  (2).jpg

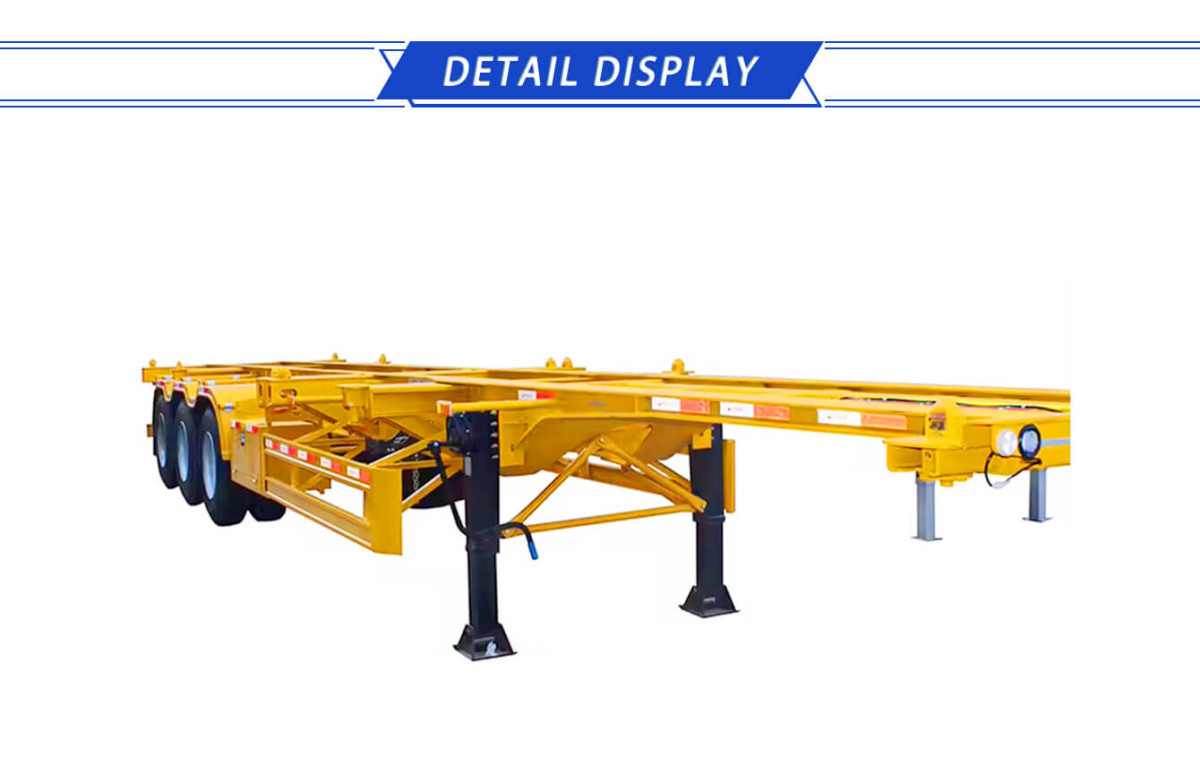

skeleton trailer  (3).jpg

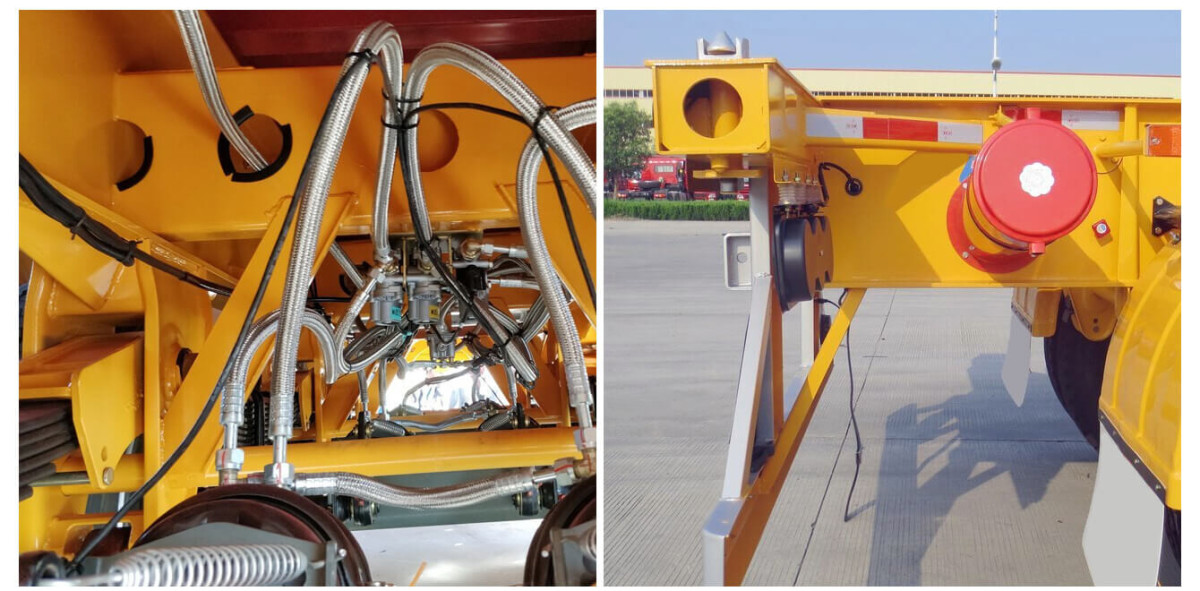

skeleton trailer  (4).jpg

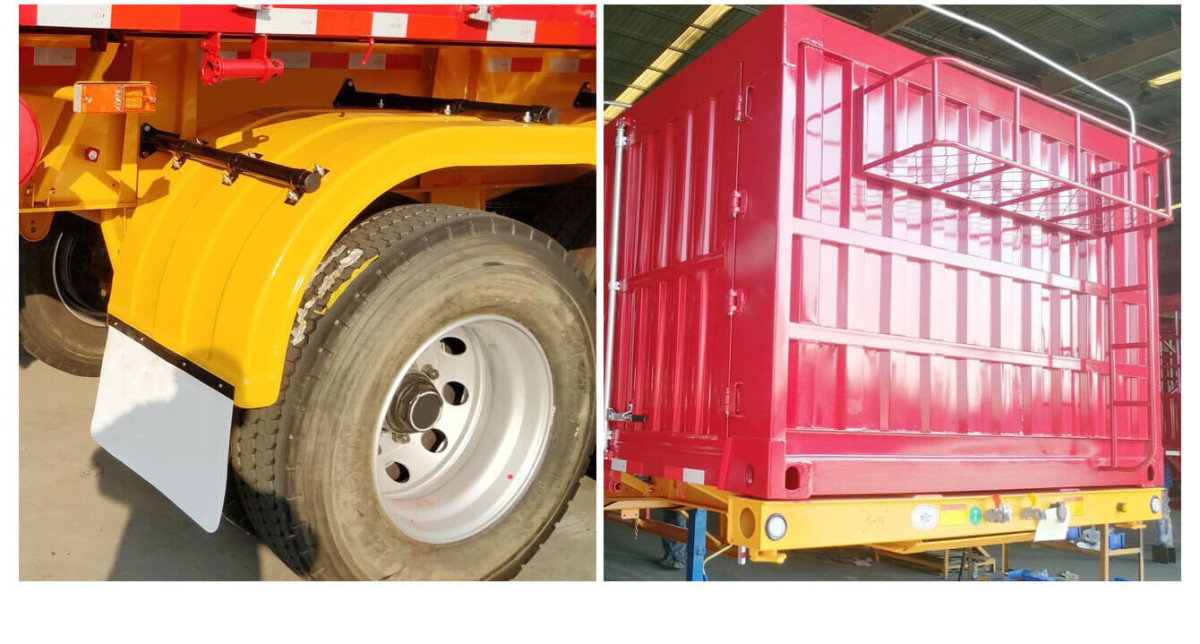

skeleton trailer  (5).jpg

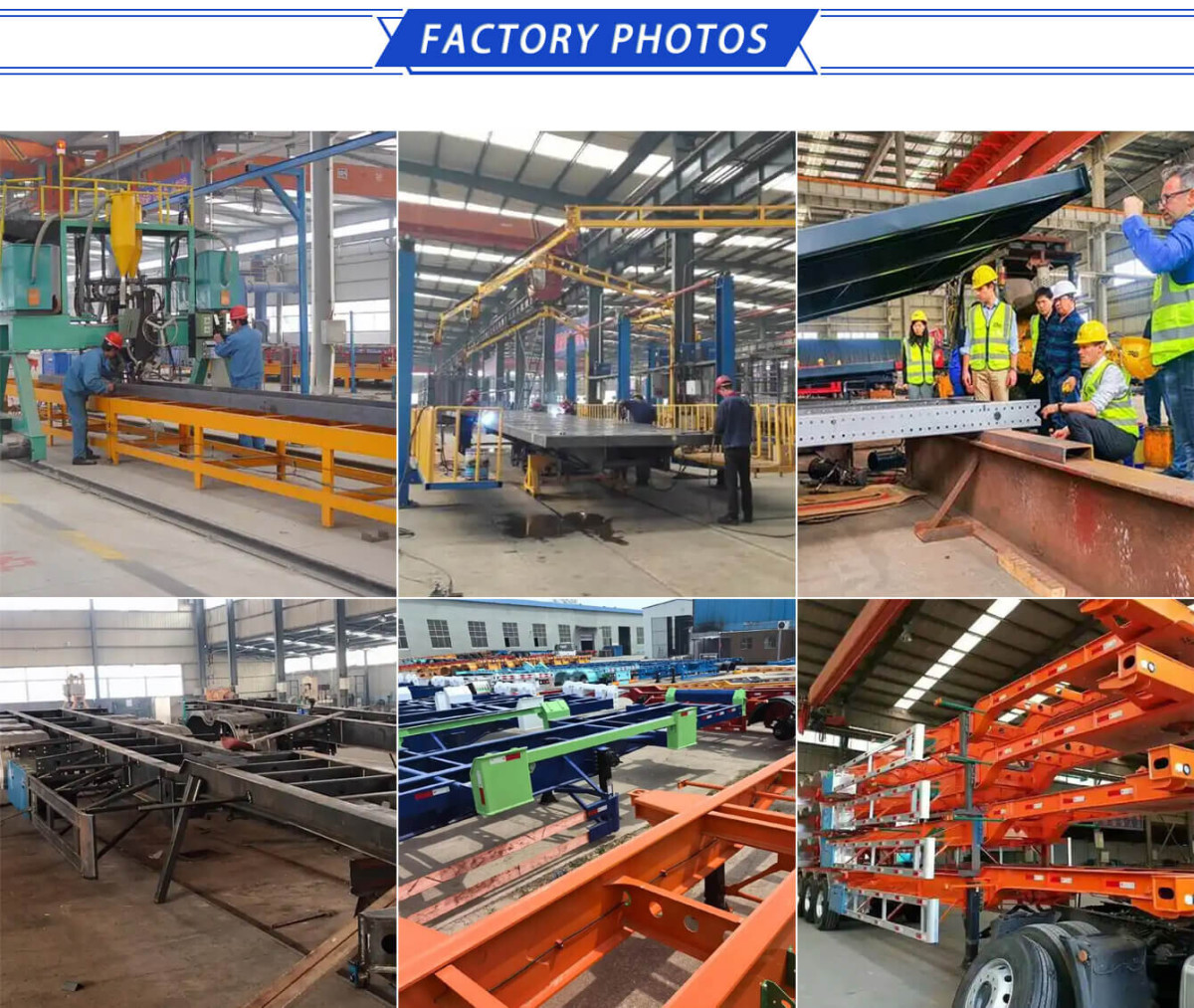

skeleton trailer  (6).jpg
