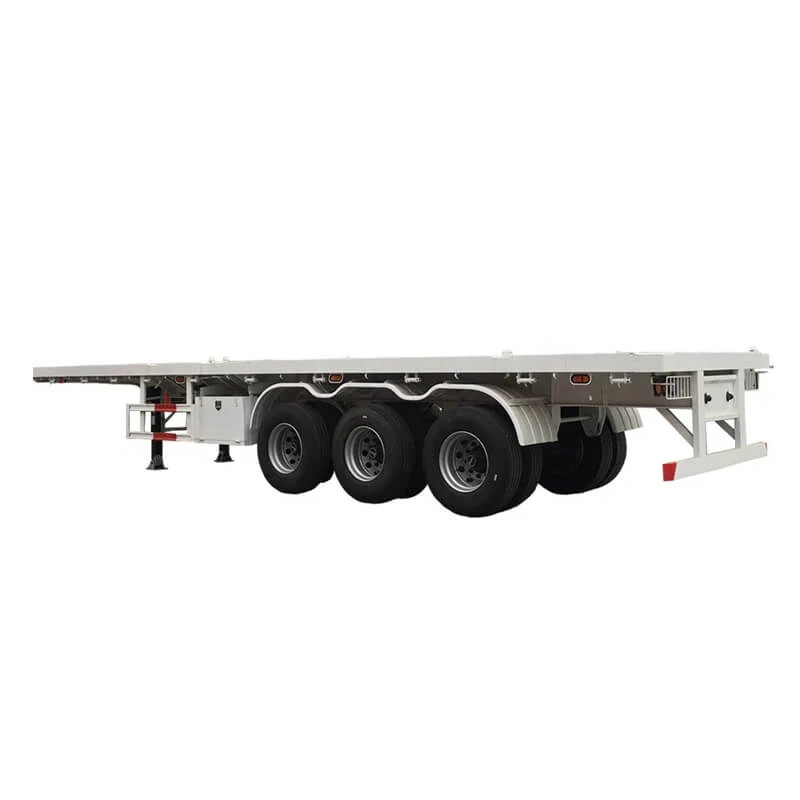

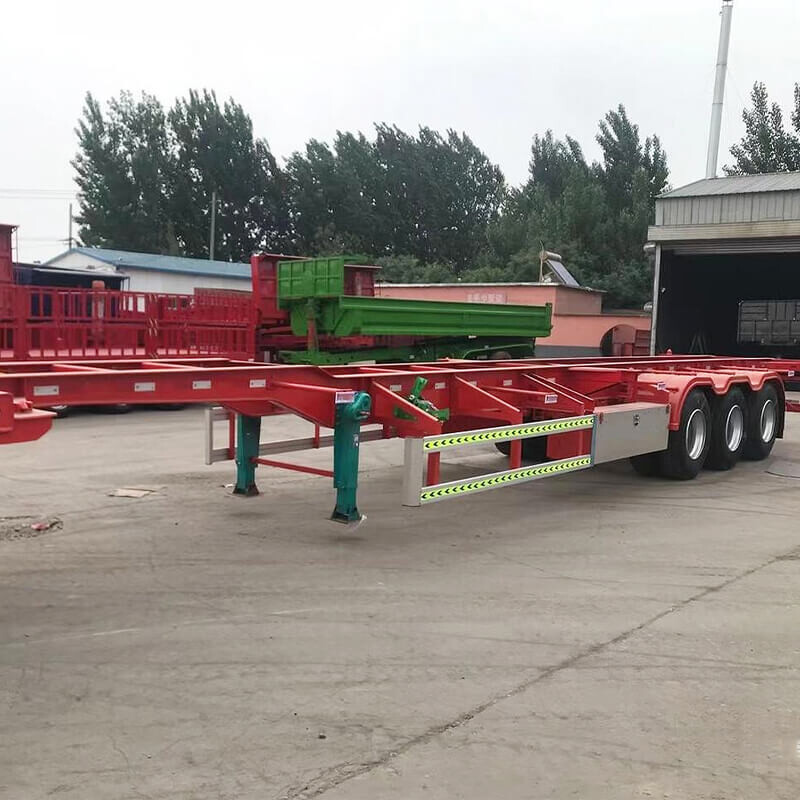

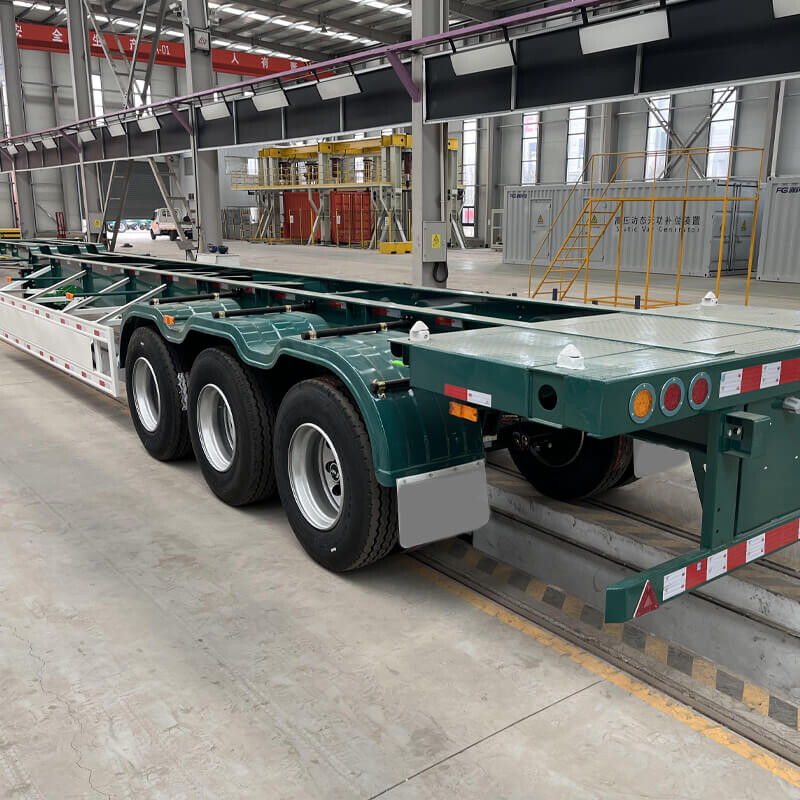

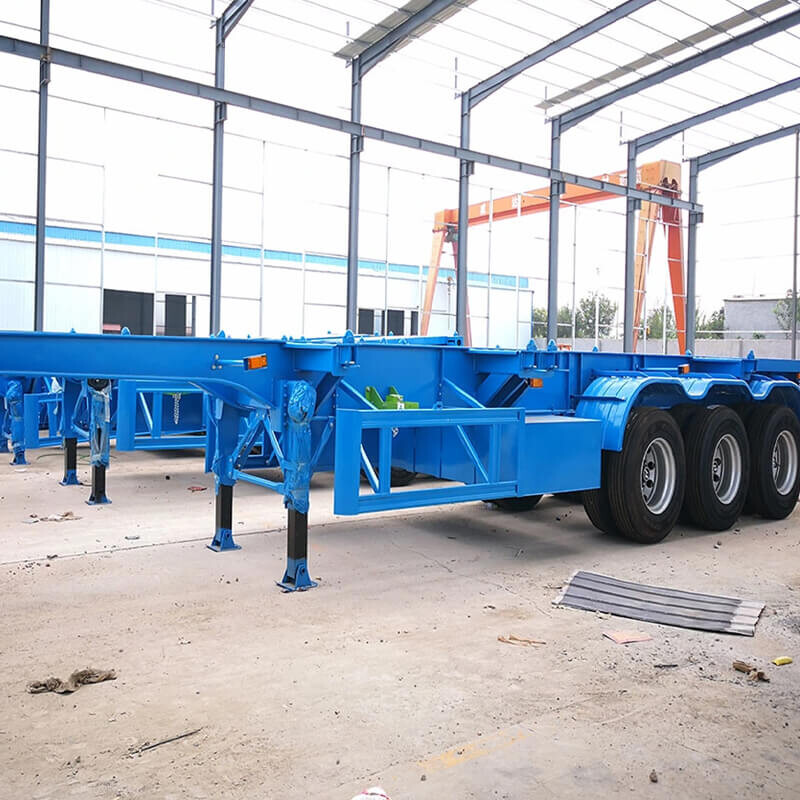

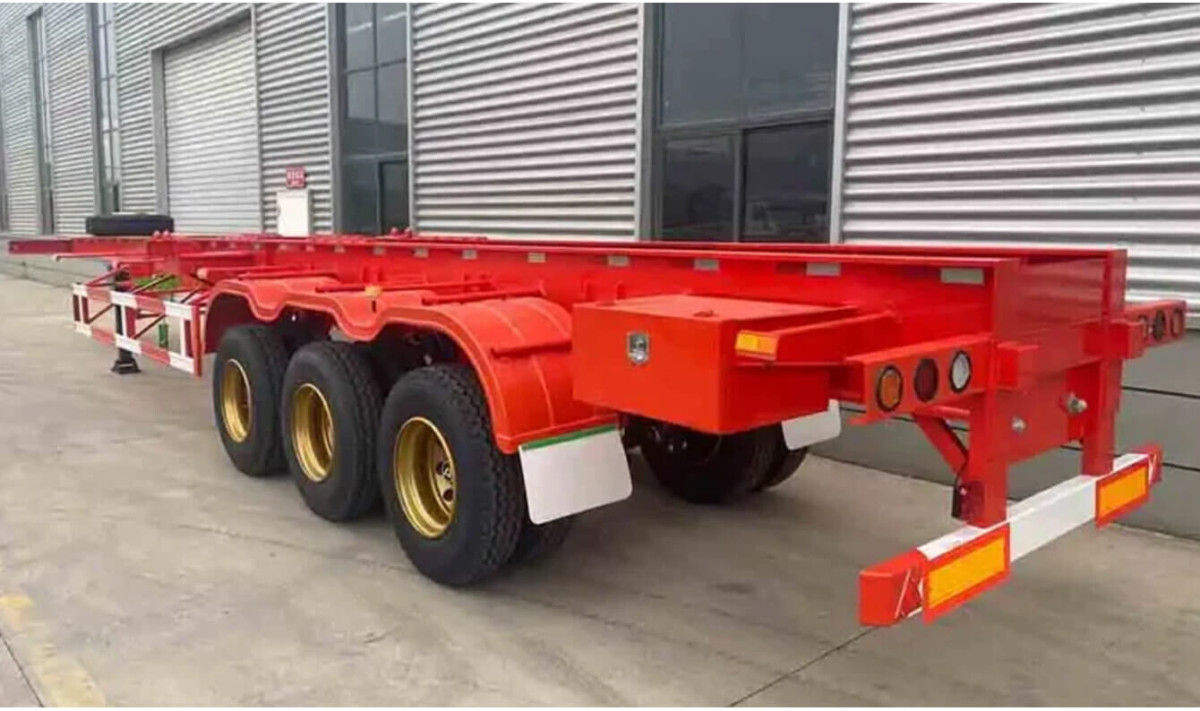

Container chassis trailer is a type of semi-trailer with a frame made up of longitudinal beams, crossbeams, and front and rear end beams welded together. It is similar in appearance to a flat semi-trailer, except that a frame is used instead of a steel plate. When viewed from above, its bottom is exposed, so the goods it transports are generally quite special.

The Structure Of A Container Chassis Trailer

• Firstly, the chassis is usually made of high-strength steel, which has excellent load-bearing capacity and compressive performance.

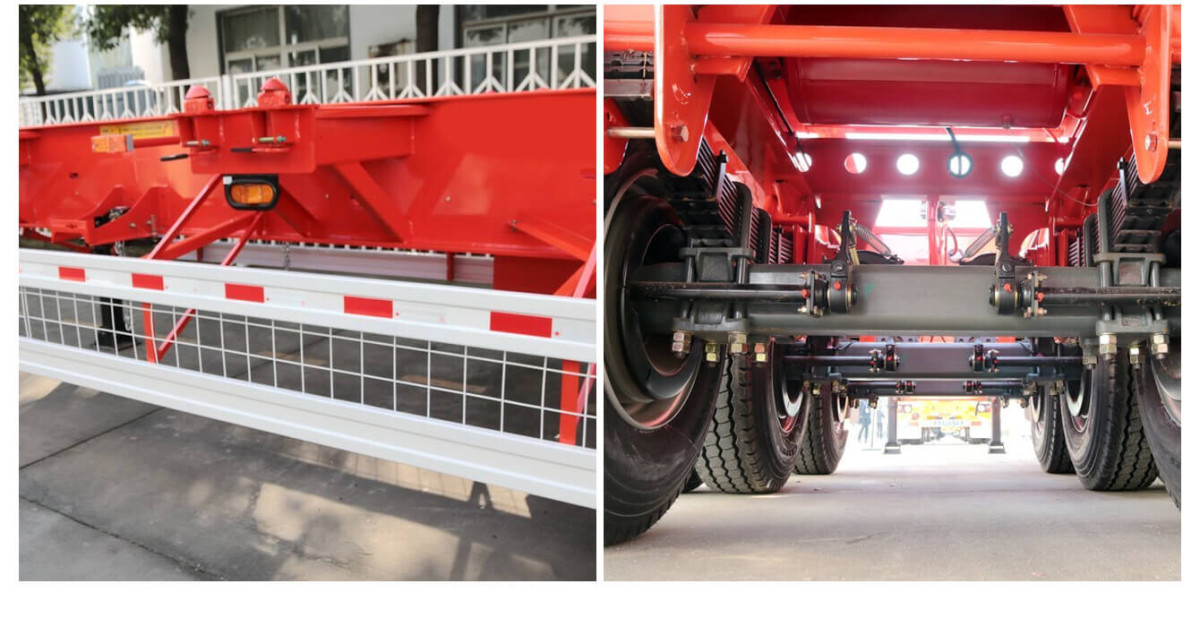

• Next is the suspension system, which includes mechanical suspension and air suspension. The common one is the air suspension system, which can effectively reduce shock and improve driving stability.

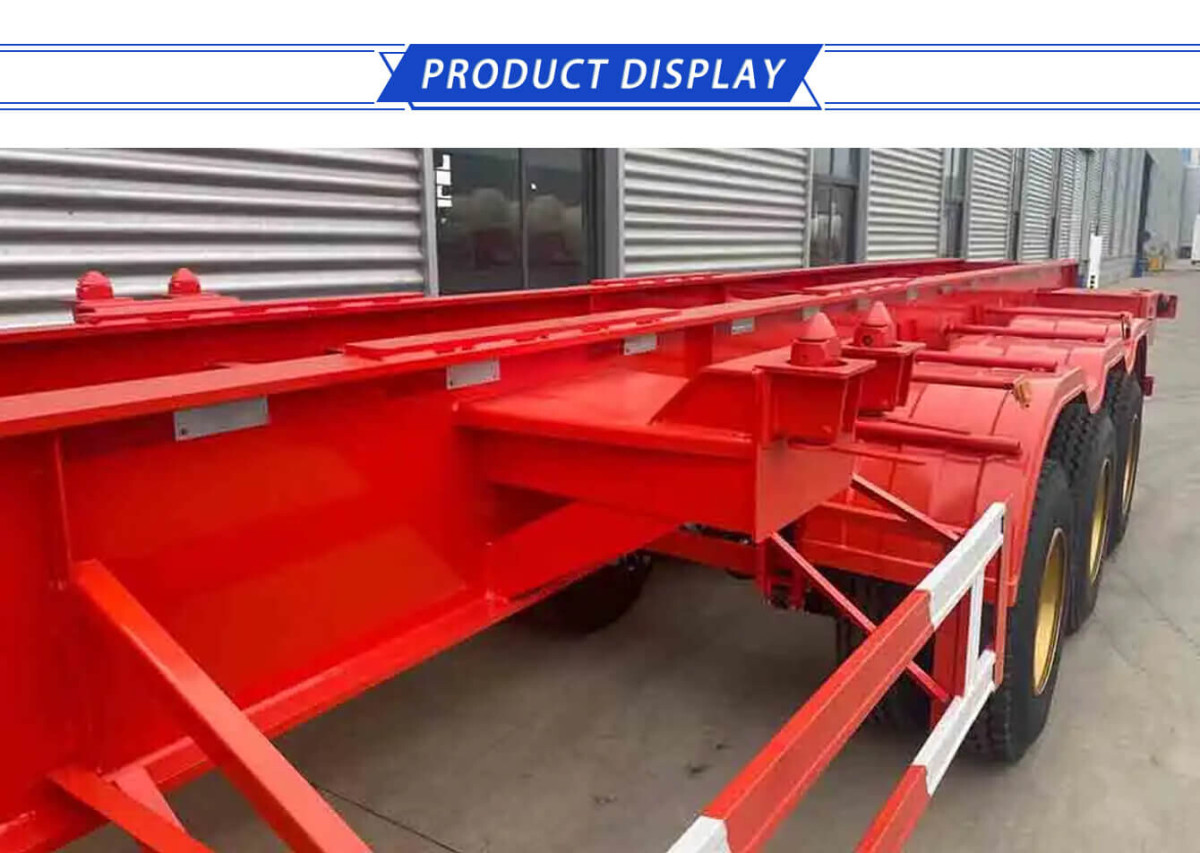

• The most important part is the container fixing device, which can firmly fix the container, ensuring that it will not slip or fall off during transportation.

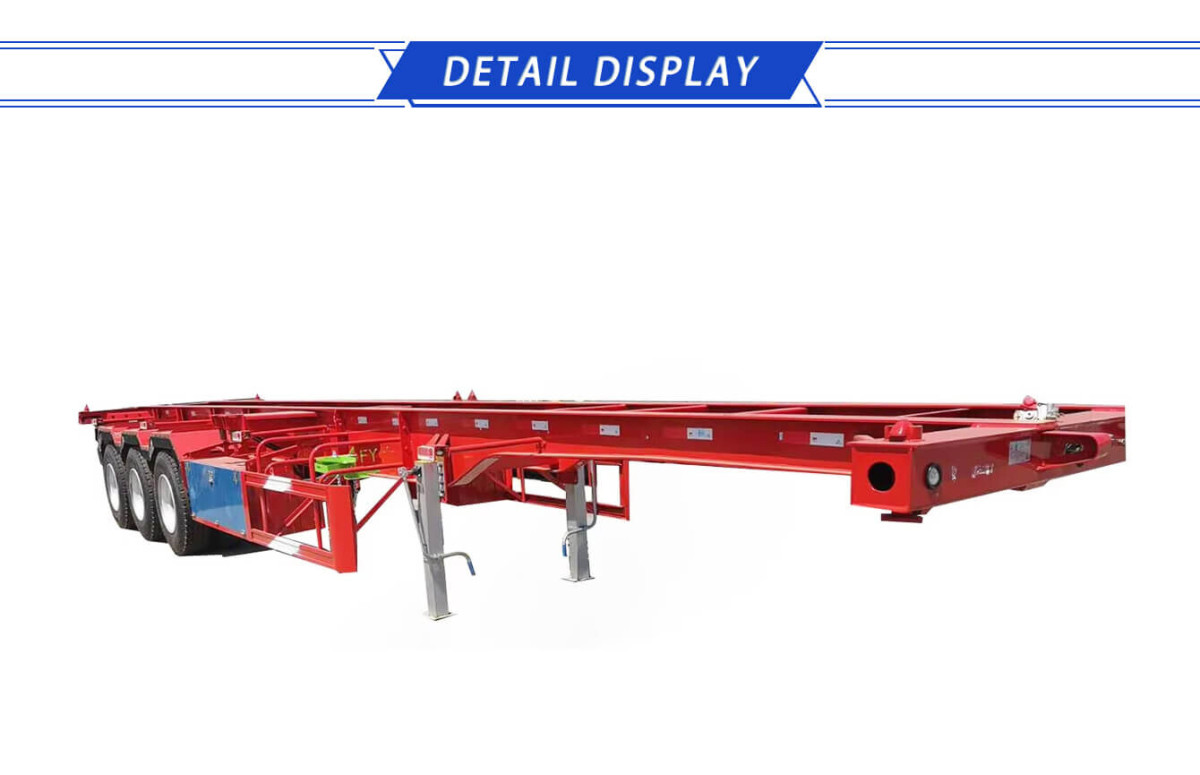

•  Skeleton Trailer Specifications

• Payload	40-80T
  Dimension	1.25m×2.5m×1.55m
  Main Beam	Top 14mm, Middle 8mm, Bottom 16mm, height 500mm Bottom plate: 16mm, Material: Q345B carbon steel
  Axle	3pcs axles, 13tons BPW / FUWA brand

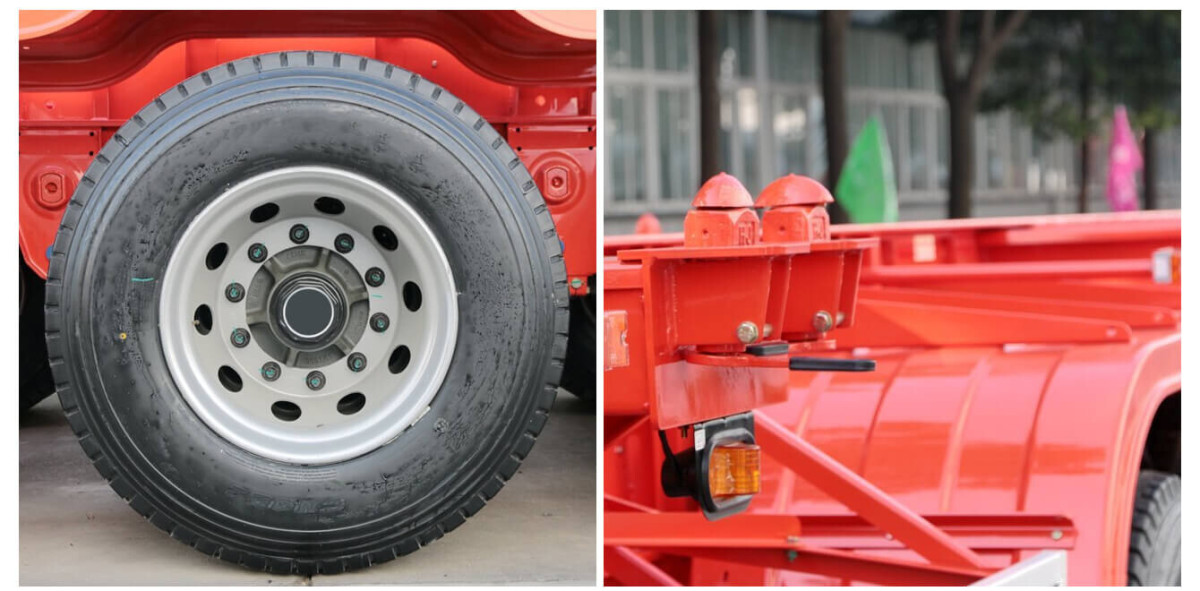

  Tires	12 units, 12.00R22.5 or 315/80R22.5
  Suspension	Mechanical suspension or Air suspension
  Landing Gear	Jost brand D200T or Chinese brand 28tons(double-speed), Jost brand 28T lifting capacity
  Leaf Spring	90mm(W)*16mm(T)*10 Layer
  King Pin	Jost brand 2.00 or 3.5 inch
  Rim	9.00-22.5 or 9.75-22.5
  Twist Lock	12 units for 20ft 40ft container
  Socket	7-pin Socket
  Light	LED light
  Voltage	24V
  ABS	Optional
  Color	Optional
  Toolbox	Customizable

•

•

•

•

•

•
