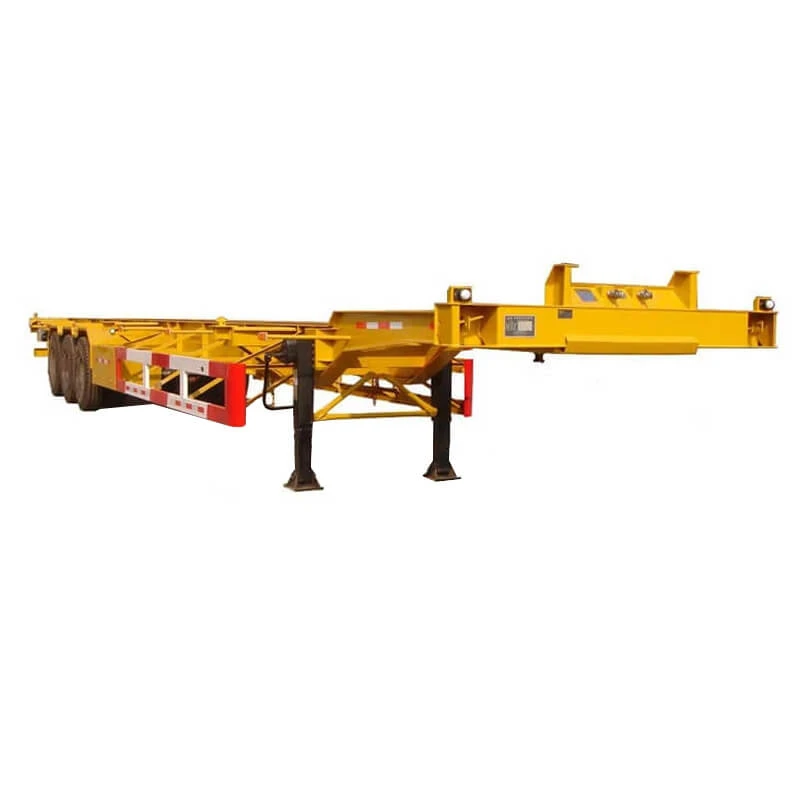

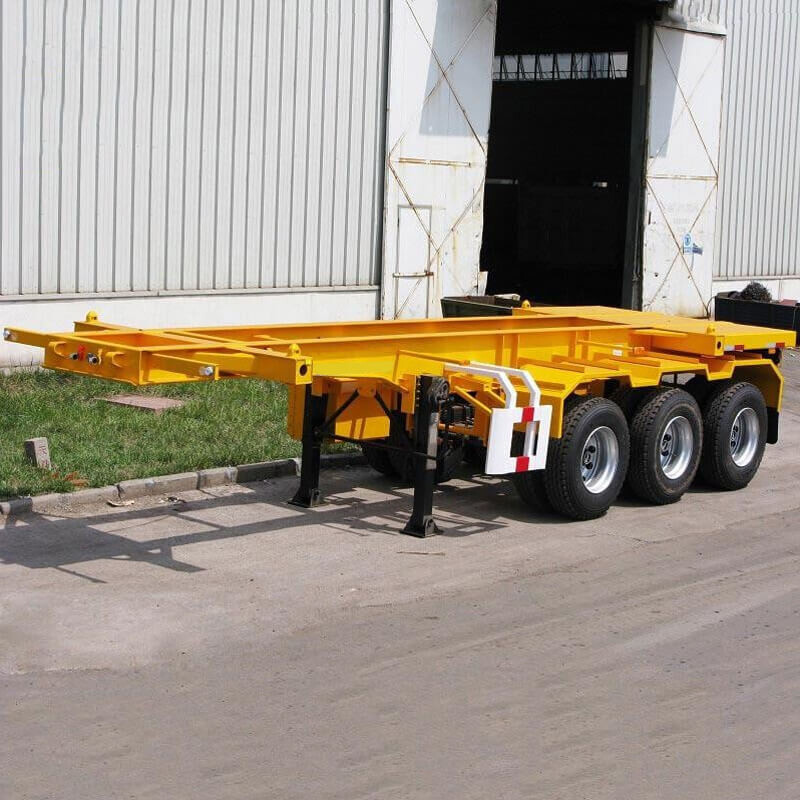

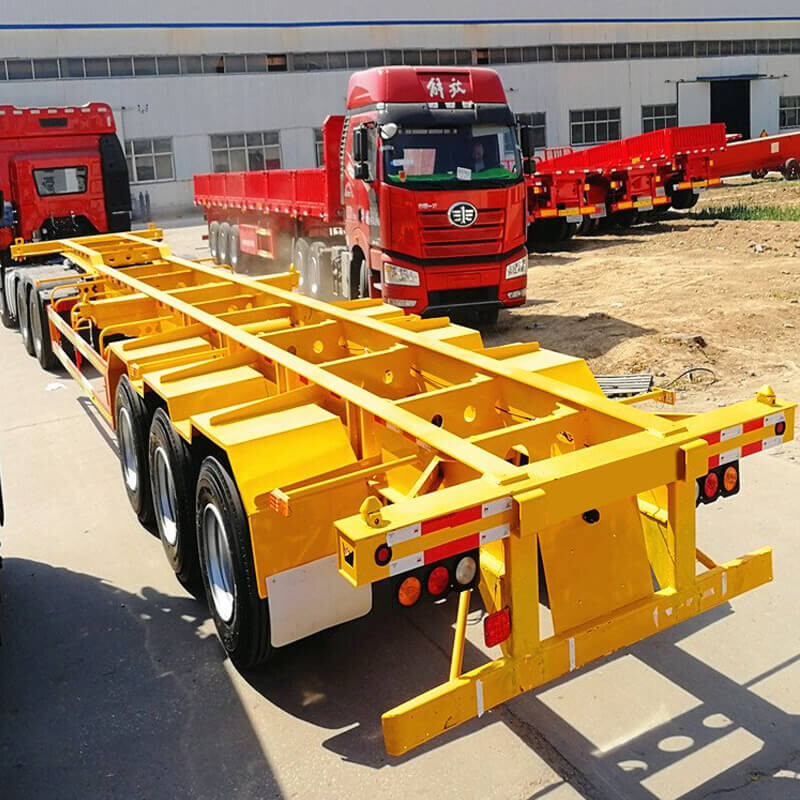

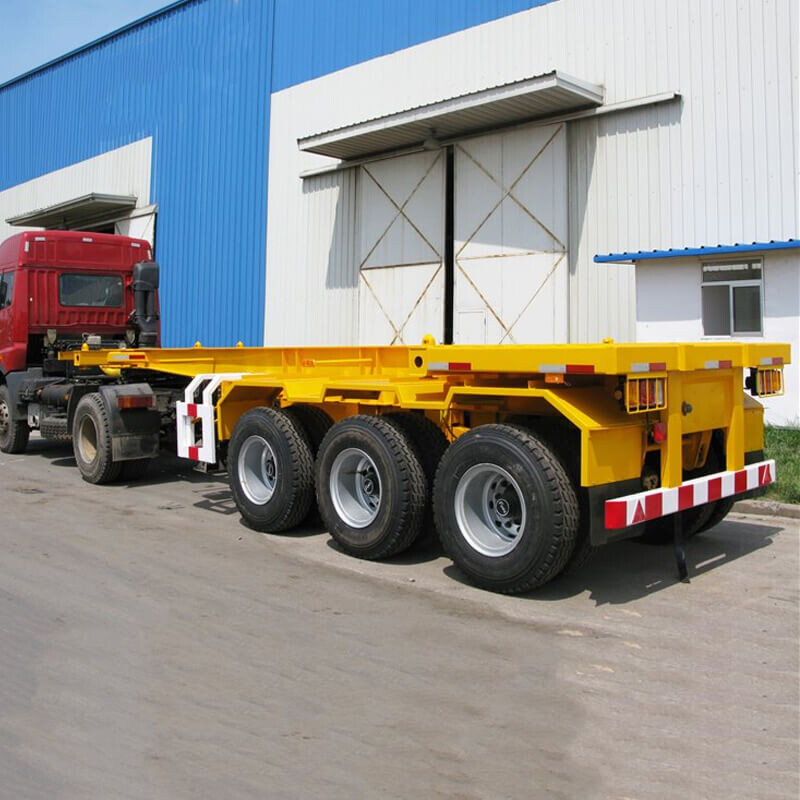

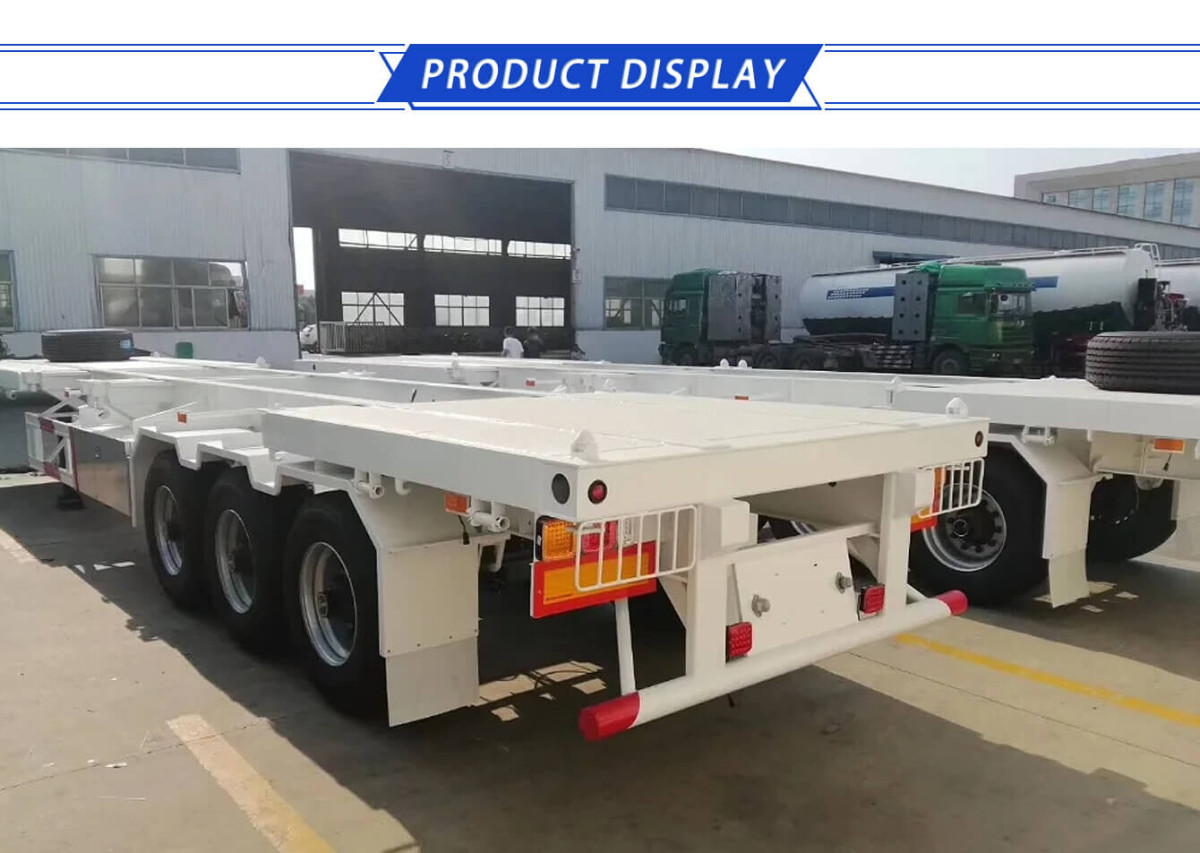

Skeleton trailers, also referred to as chassis trailers or container semi-trailers, are essential for transporting various types of containers. The Zonghui 3-axle skeleton trailer is specifically designed for transporting standard containers, refrigerated containers, as well as those used for bulk cargo and large machinery. Known for their flexibility in loading and unloading, along with smooth transportation performance, these trailers are widely used in industries such as long-distance land transport, physical distribution, port operations, and multimodal transport.

Zonghui offers a range of 3-axle skeleton trailers, including 20-foot, 40-foot, 45-foot, and custom-sized options to meet specific customer requirements.

The Zonghui 3-axle container semi-trailer is made with Q345B high-strength steel, which ensures a lightweight yet durable structure. This allows the trailer to maintain excellent stability even on rough or uneven road surfaces, making it well-suited for complex transportation conditions.

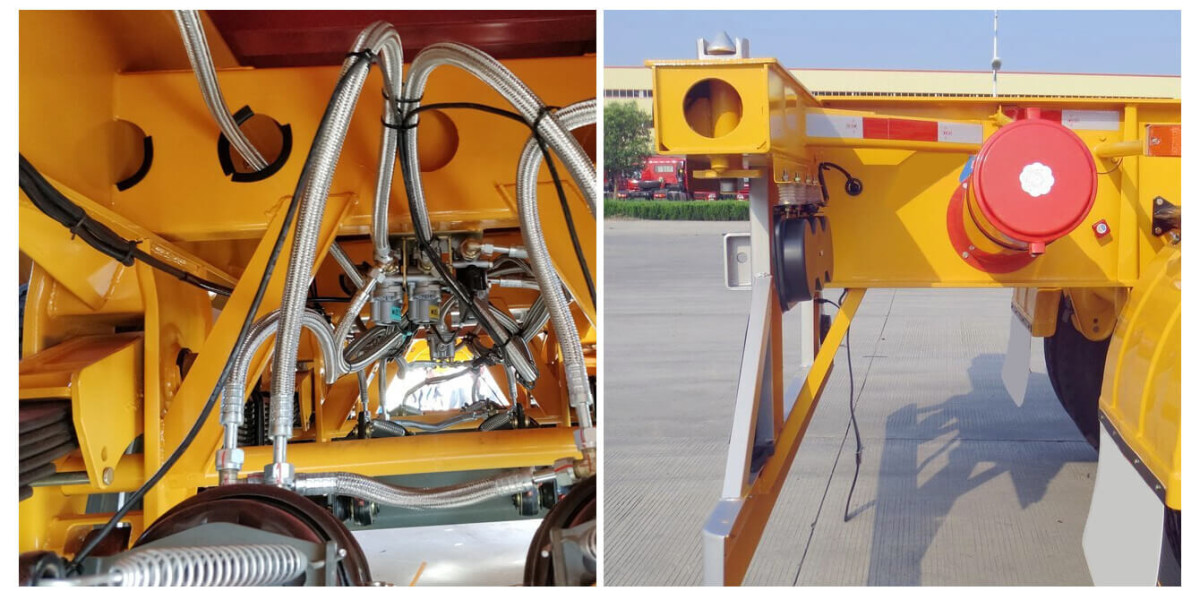

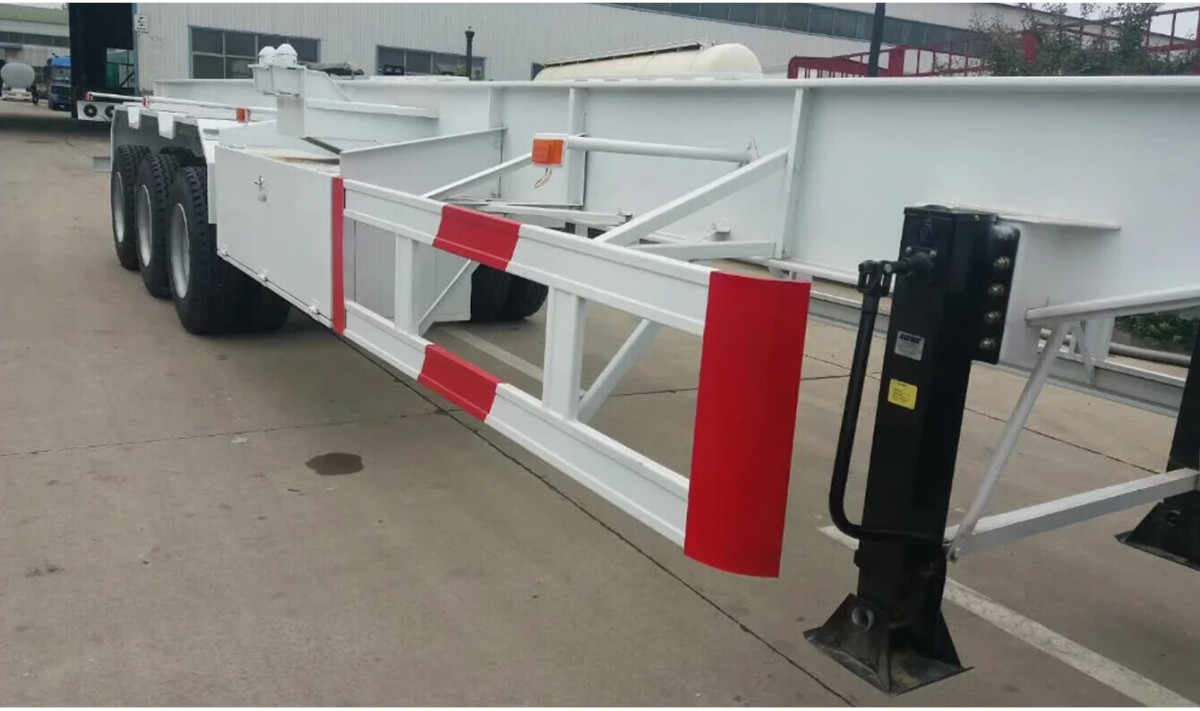

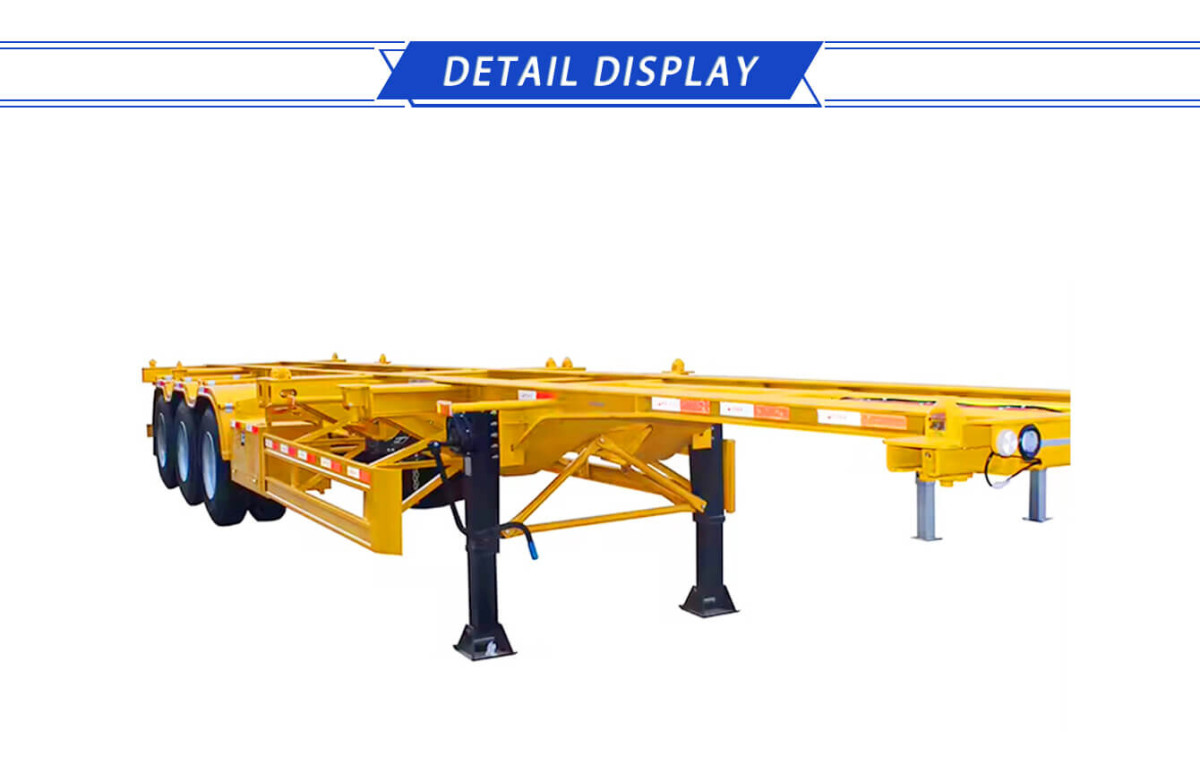

Details of 3 Axles Skeleton Trailer:

1. The common configuration of girders is 14 upper and 16 lower vertical plates, 8 thick, and the height of the vertical plates is 500mm. We will also adjust the most suitable girder configuration according to the different load requirements of customers.
2. Using mechanical suspension, equipped with 10 leaf springs with a thickness of 16mm and a width of 90mm, it has stronger load-carrying capacity, higher stability, and is more suitable for a variety of complex road conditions.
3. The vehicle is 12.5m long and has a load capacity of 30-60 tons. It can transport 20-foot and 40-foot containers. The 12 container locks and rope tighteners can firmly fix the containers on the semi-trailer.
