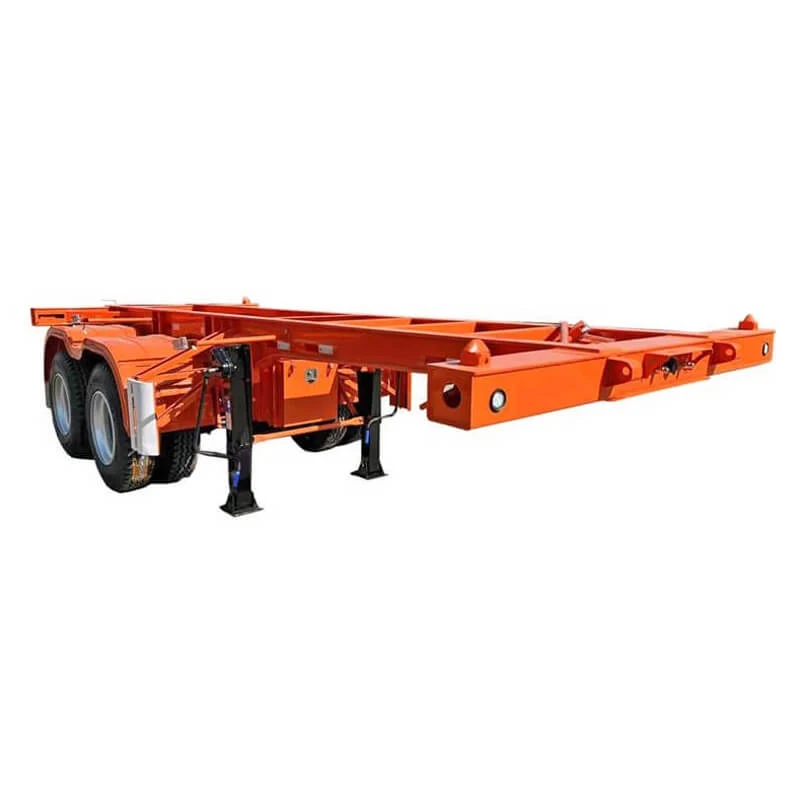

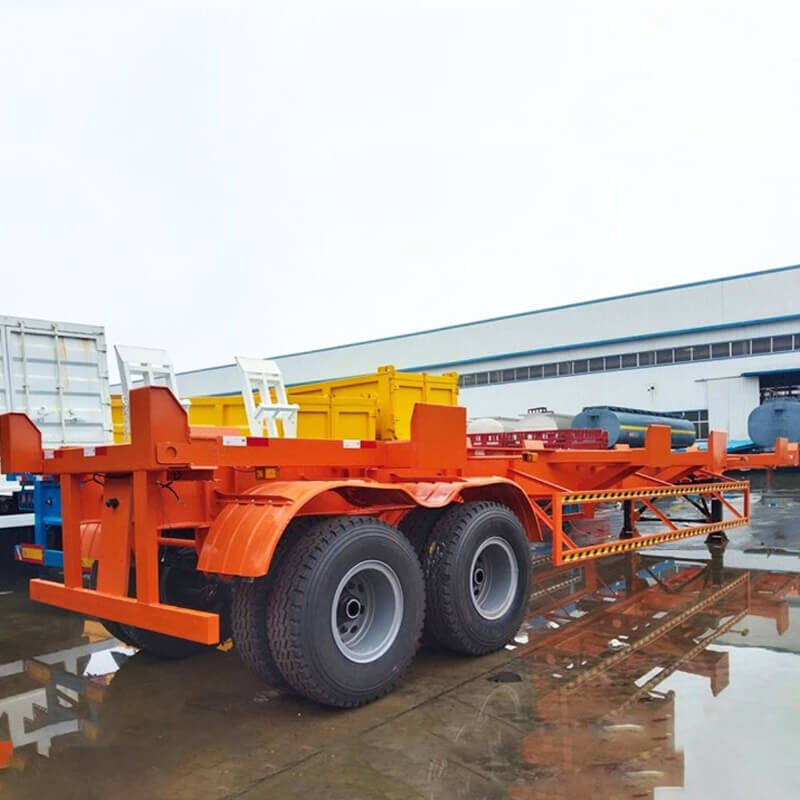

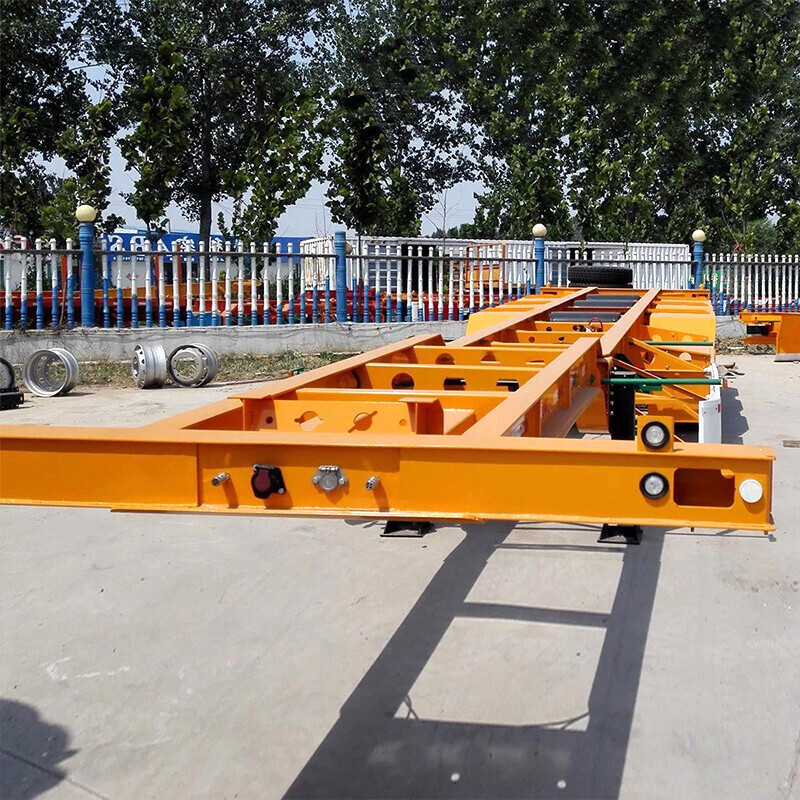

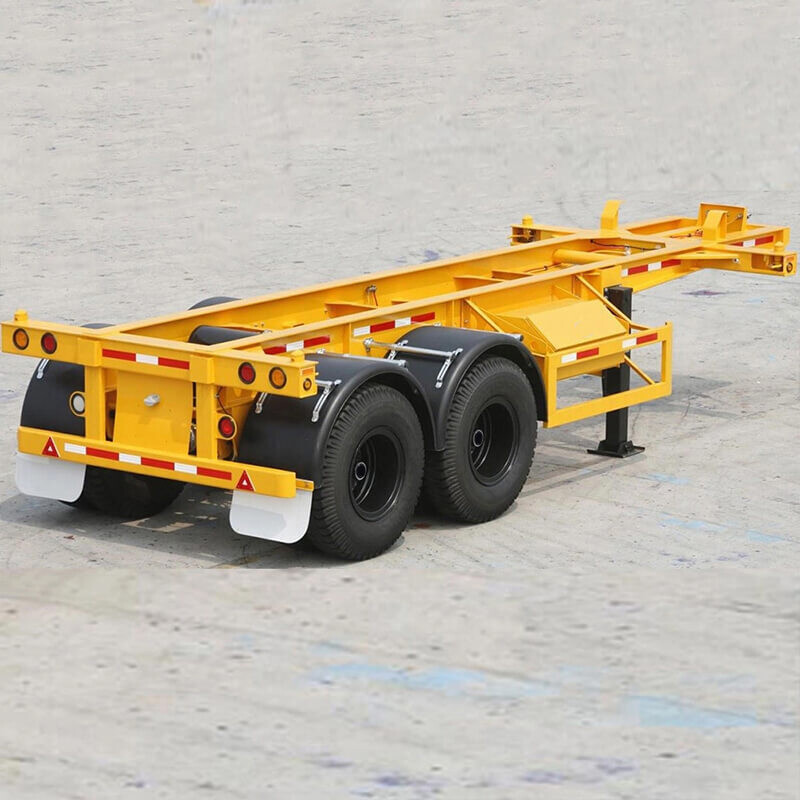

2axle Chassis Trailer
Payload: 30-70T
Axle: 2 Axles
Dimension: 1250mm×2500mm×1550mm
Support customer customization
Contact us
Products Description
Skeleton semi trailers are an essential component in the transportation industry, designed specifically for transporting containers efficiently. One of the most common configurations is the 2-axle skeleton trailer, a versatile and reliable option for moving 20-foot containers. The design of the semi trailer is directly influenced by the number of axles, with more axles providing the necessary support for heavier loads. The 2-axle skeleton trailer typically measures 12 meters in length, 2.5 meters in width, and has a bottom height of 1.55 meters from the ground, making it ideal for urban and long-haul transportation.

Equipped with sturdy container locks, this trailer configuration is perfect for transporting standard 20-foot containers. Additionally, customization options are available for clients who require longer trailers for different applications. The 2-axle skeleton trailer provides a balance of strength and maneuverability, offering customers a practical choice for efficient cargo transport.

2 Axle Chassis Trailer Specifications

SKELETON TRAILER SPECIFICATIONS
Payload30-70T
Dimension1250mm×2500mm×1550mm
Main BeamTop 14mm, Middle 8mm, Bottom 16mm, height 500mm
Bottom plate: 16mm, Material: Q345B steel
Axle3pcs axles, 13tons BPW / FUWA brand
Twist Lock4,8,12 sets (lifting or screw type)
Tires12 units, 12.00R22.5 or 315/80R22.5
SuspensionMechanical suspension
Landing GearJost brand D200T or Chinese brand 28tons(double-speed), Jost brand 28T lifting capacity
Leaf Spring90mm(W)*16mm(T)*10 Layer
King PinJost brand 2.00 or 3.5 inch
Rim9.00-22.5 or 9.75-22.5
ABSOptional
LightLED light
Voltage24V
Socket7-pin Socket
ColorOptional
ToolboxCustomizable

Application Scenario for 2-Axle Chassis Trailers

2-axle chassis trailers are widely used in the transportation of containers, offering a cost-effective and efficient solution for various applications:

  1. Port and Terminal Transport: Ideal for moving containers between ports, terminals, and logistics hubs, thanks to their maneuverability in tight spaces.

  2. Intermodal Transport: Key in transferring containers between different transport modes (ships, trains, trucks) in seamless supply chains.

  3. Regional and Local Haulage: Suitable for short-to-medium distance transport of 20-foot containers, offering flexibility on both highways and local roads.

  4. Domestic and Cross-Border Freight: Efficient for long-distance transportation across regions and borders, complying with international container standards.

  5. Cost-Effective Solution: Perfect for businesses handling smaller loads or empty containers, offering lower operational costs compared to larger trailers.

2-axle chassis trailers are essential for container logistics, providing reliability, flexibility, and efficiency in diverse transportation scenarios.

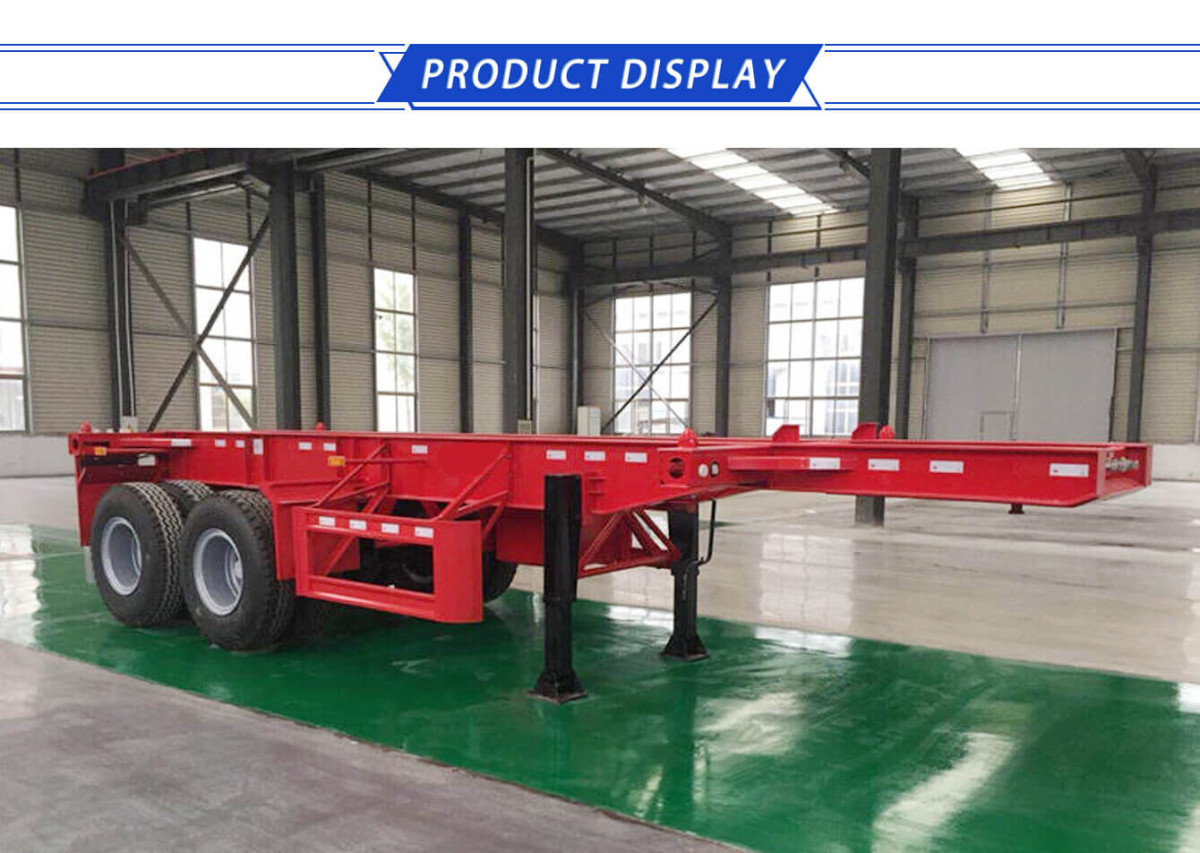

2 axle Chassis Trailer (1).jpg

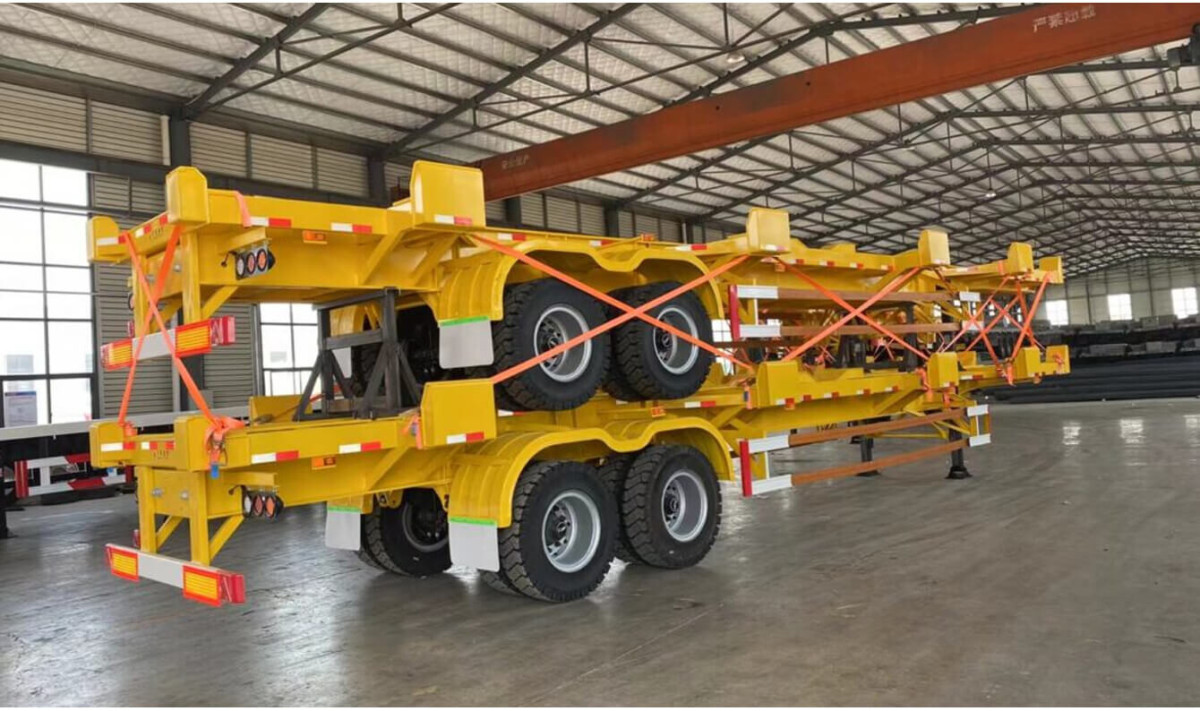

2 axle Chassis Trailer (2).jpg

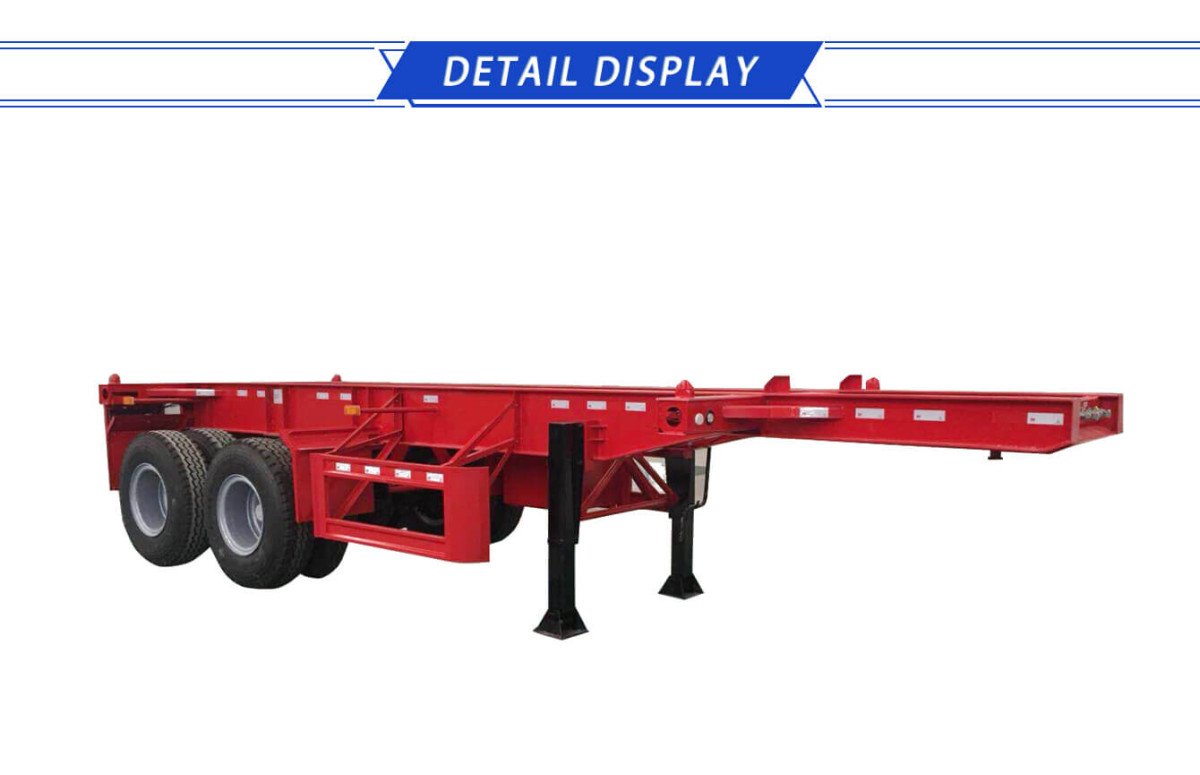

2 axle Chassis Trailer (3).jpg

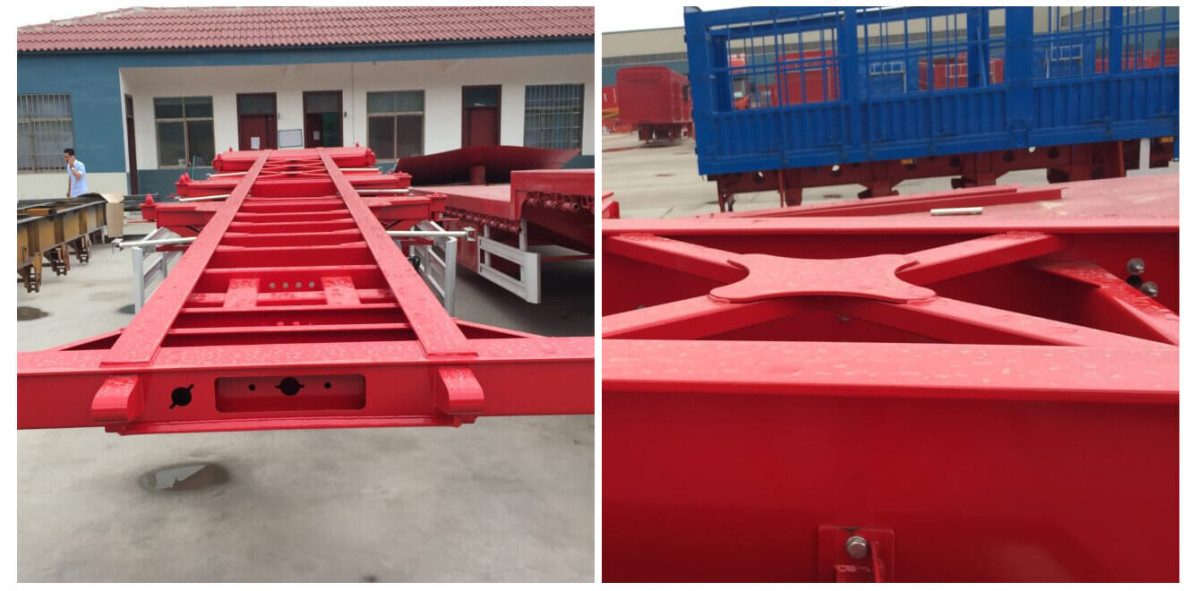

2 axle Chassis Trailer (4).jpg

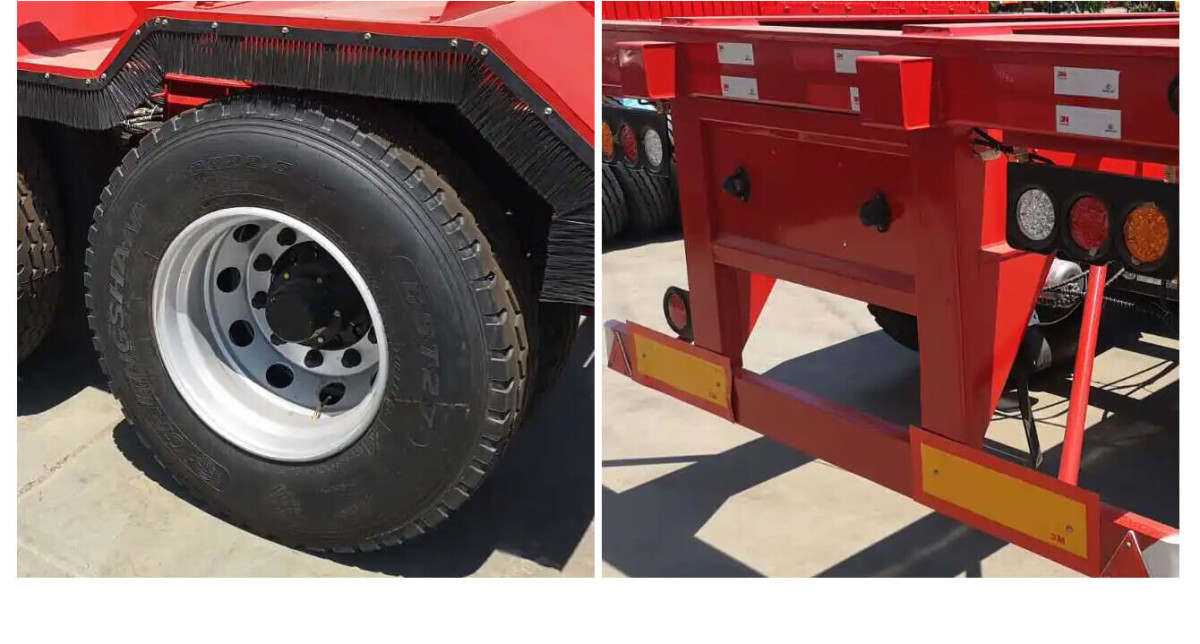

2 axle Chassis Trailer (5).jpg

2 axle Chassis Trailer (6).jpg
